1. This machine is primarily used for packaging various materials such as granules, powders, liquids, and pastes (e.g., juice powder, ketchup, salad dressing, honey, meat puree, butter, chili sauce, etc.).
2. Suitable for mass production in industries such as food, pharmaceuticals, and chemicals.

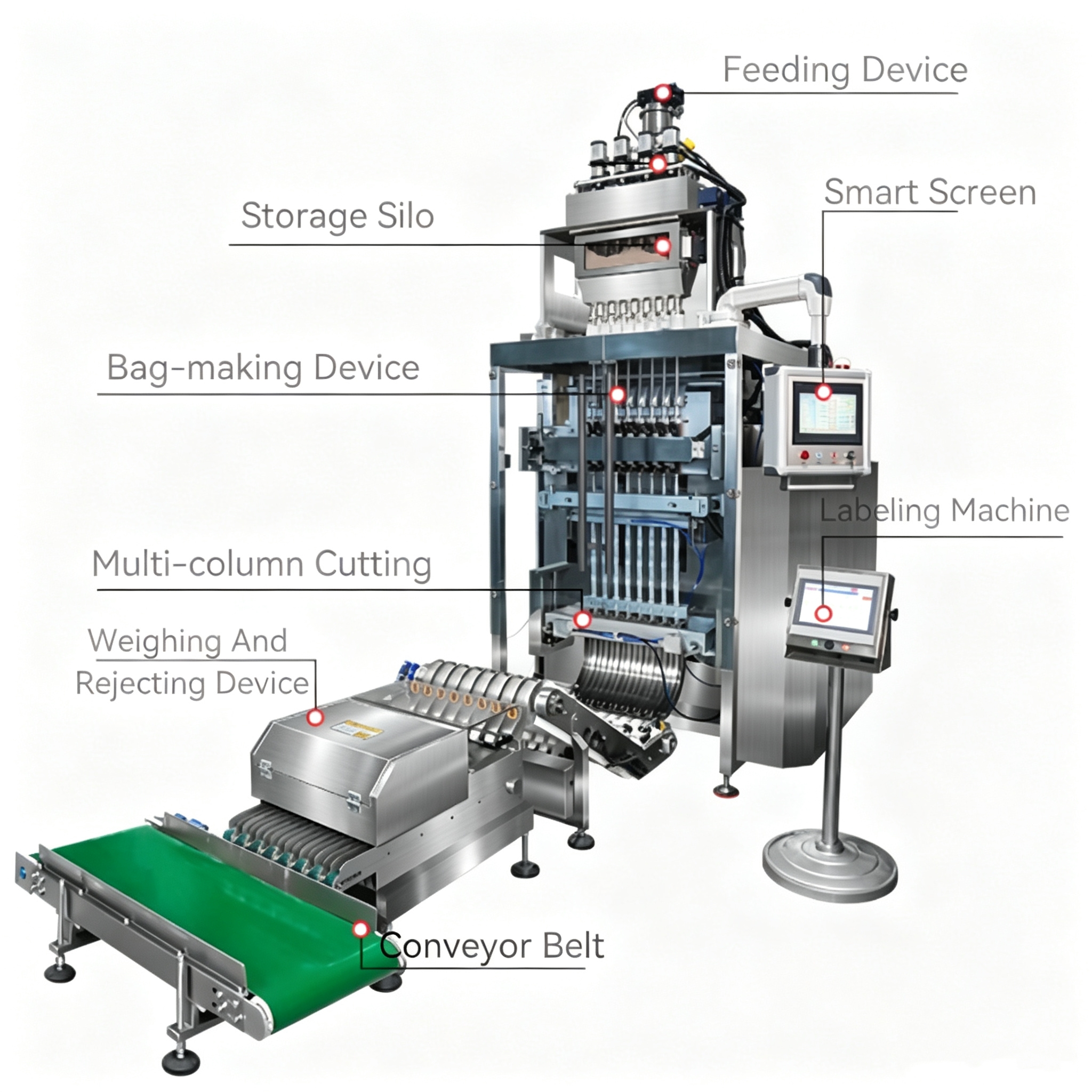

3. Fully automated processes include metering, bag making, filling, sealing, date printing, corner rounding, easy-tear notch cutting, and finished product counting.
1. Automated processes include metering, bag making, filling, sealing, date printing, corner rounding, easy-tear notch cutting, and finished product counting.
2. Utilizes PLC control components, a touchscreen interface, and a user-friendly operating system.
3. Advanced design ensures high precision, high speed, and high efficiency.
4. Automatic stop function when film runs out; saves materials and prevents waste.

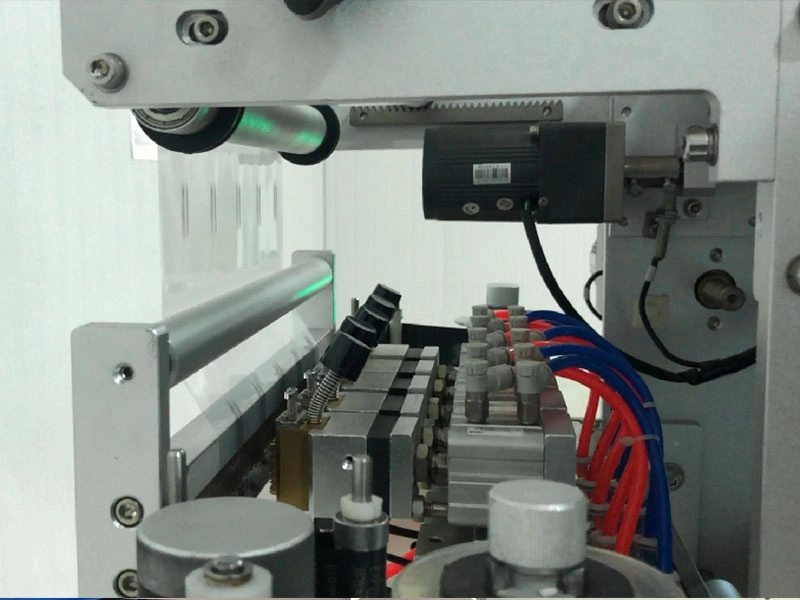

5. Uses photoelectric tracking for automatic positioning, ensuring fast, stable, and accurate film feeding.
6. Can be equipped with an automatic feeding system to further enhance efficiency.
| | |
| | |

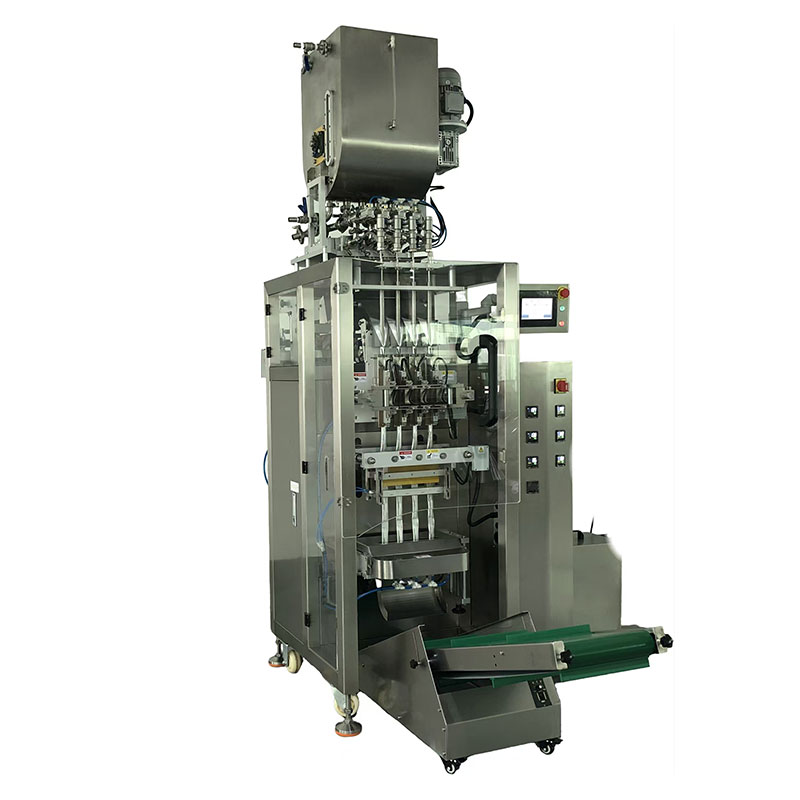

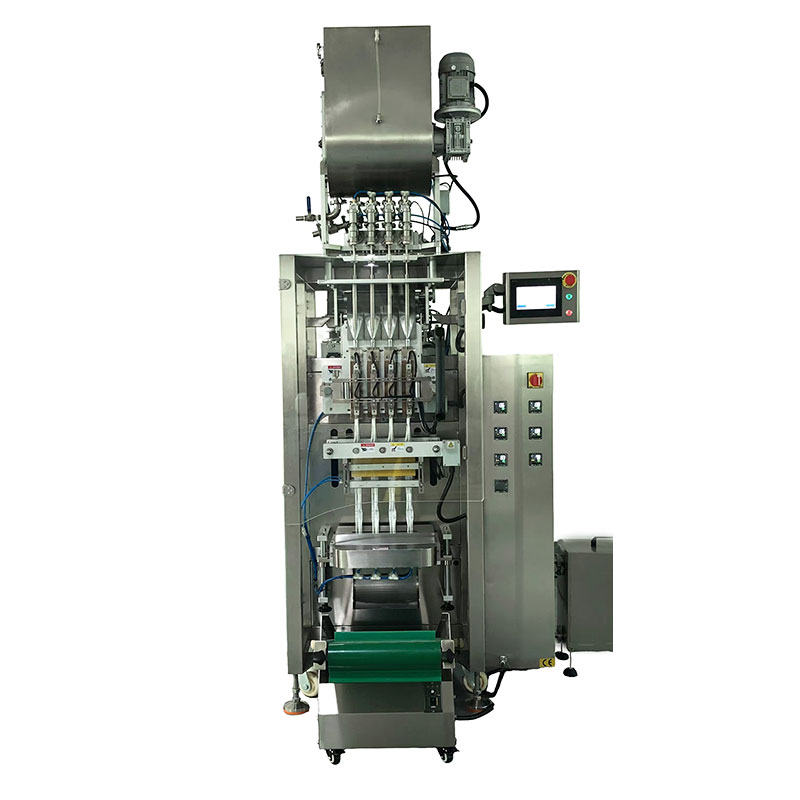

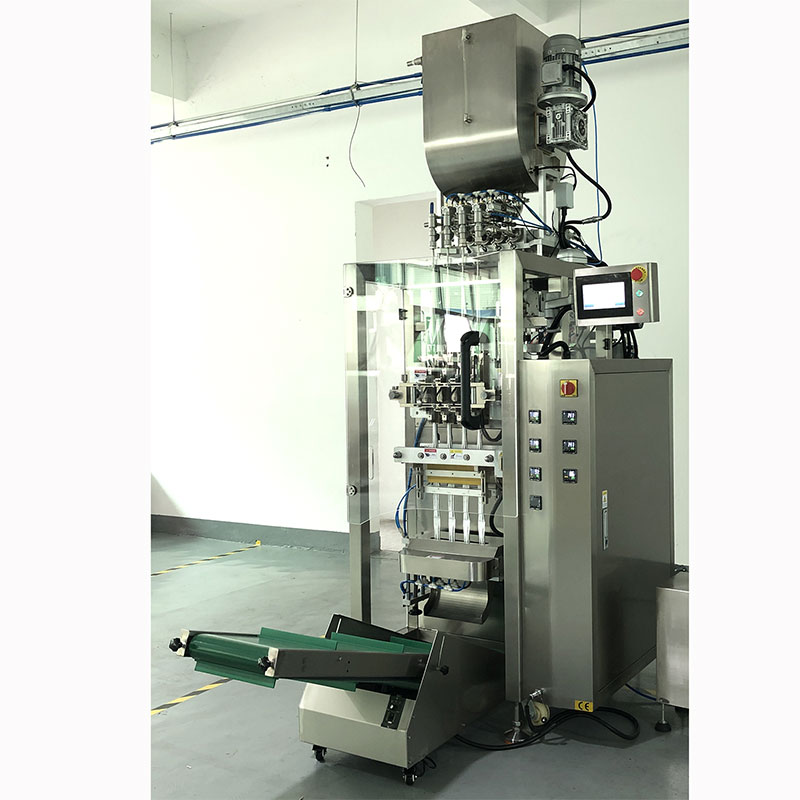

Item | HK300D | HK600D | HK900D |
Number of Machine Rows | 2-4 rows | 3-10 rows | 4-16 rows |
Bag Making Length | 50-180mm | 50-180mm | 50-180mm |
Bag Making Width | 25-75mm | 25-100mm | 25-110mm |
Roll Film Width | Max. 300mm | Max. 600mm | Max. 900mm |
Roll Film Thickness | 0.07-0.1mm | 0.07-0.1mm | 0.07-0.1mm |
Packaging Speed | 30-40 cuts per minute; subject to the actual conditions of materials and packaging film | ||
Sealing Type | 3-side seal, 4-side seal, etc. | ||
Cutting Type | Straight cut, zigzag cut, round corner cut, special-shaped cut | ||

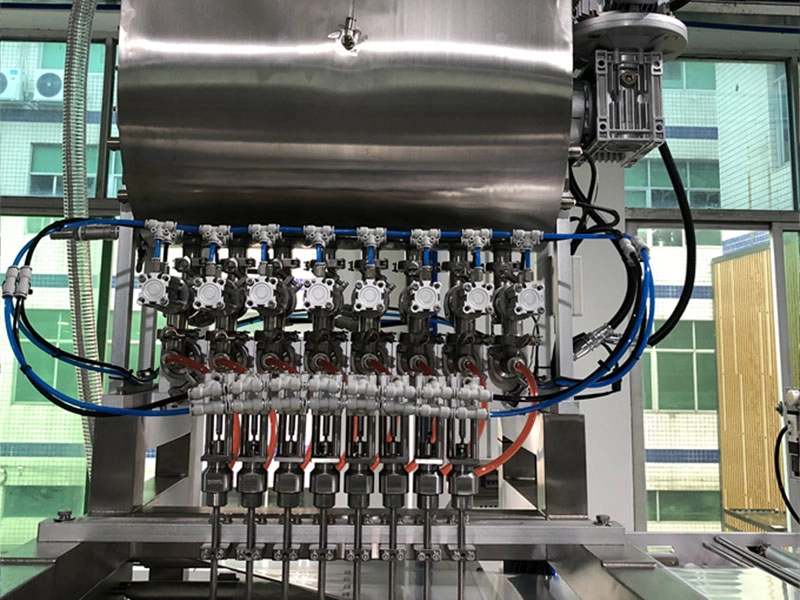

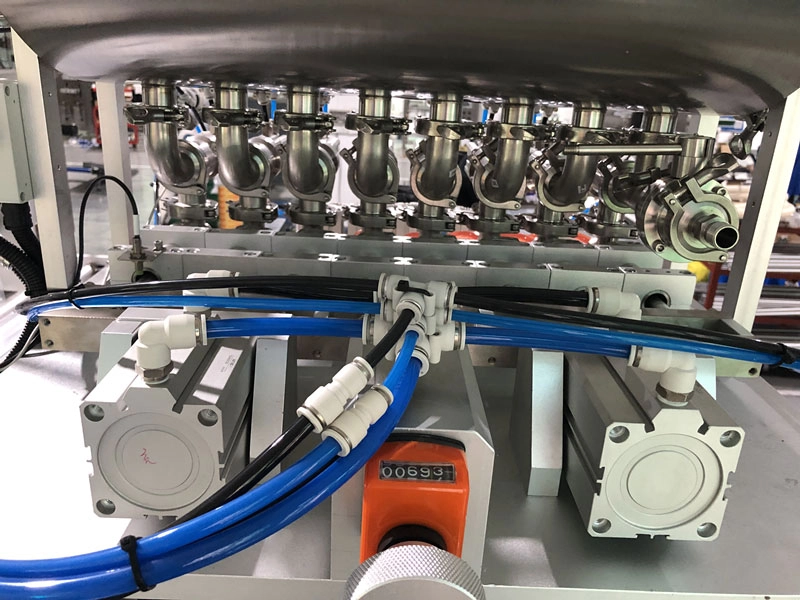

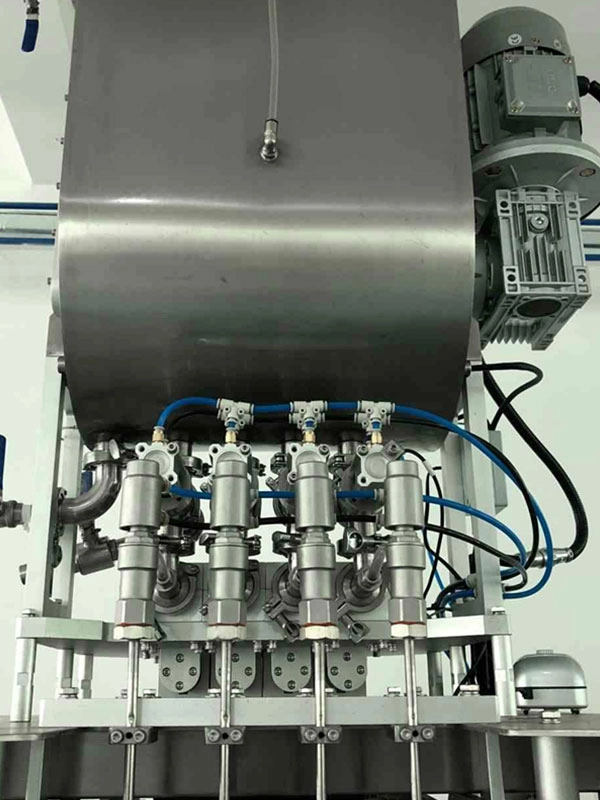

Metering Method | Screw feeder, pump | ||
Overall Dimensions | 1385*918*2005mm | 1305*1655*1930mm | 2220*2100*2500mm |
Machine Weight | 450kg | 600kg | 950kg |
