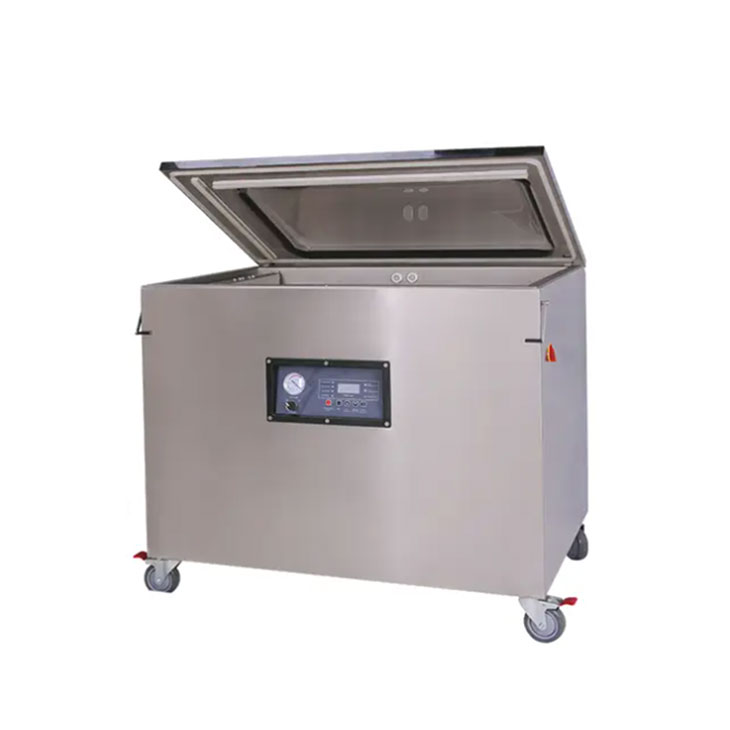

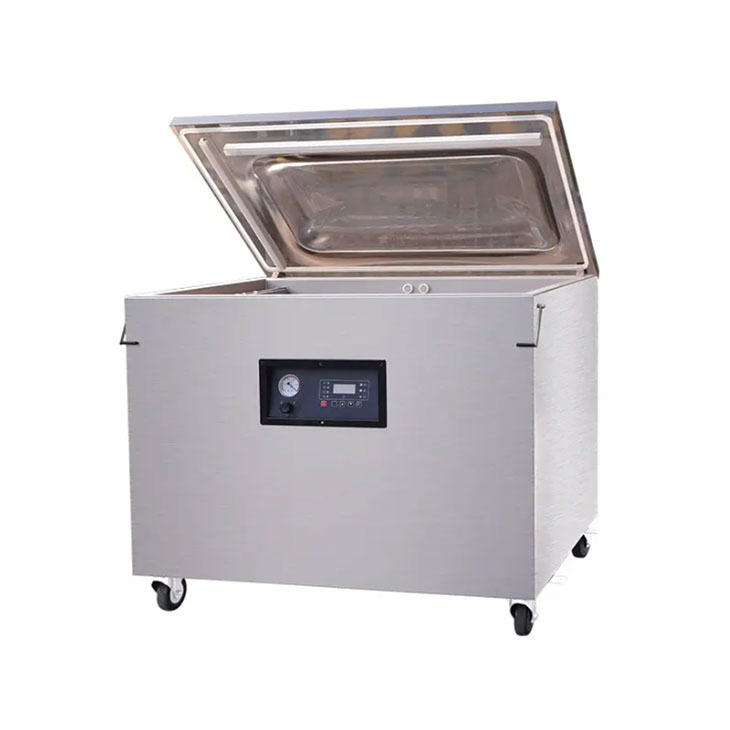

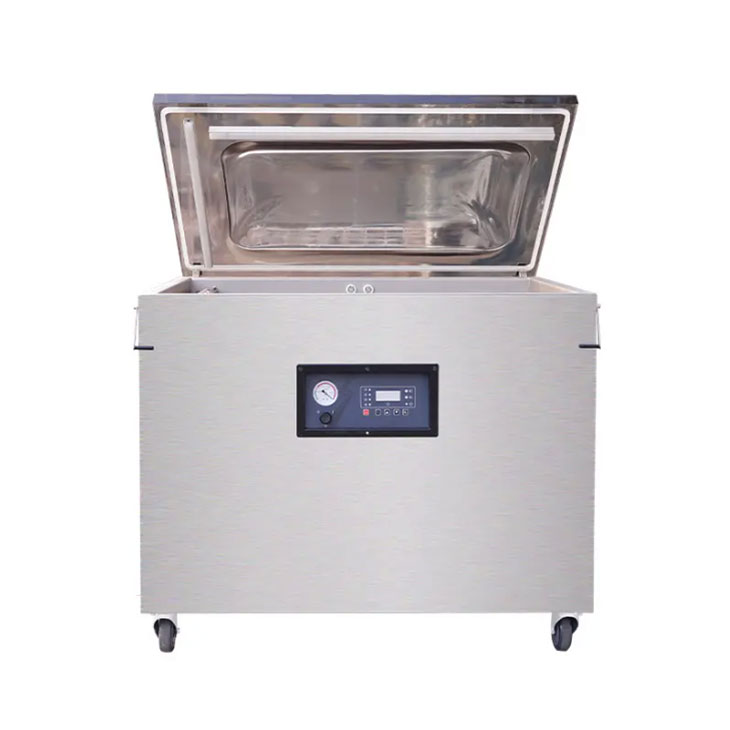

It is applicable to food industrialized packages, such as fresh meat, seafood, vegetable, and ready meal, etc. It can vacuum package larger products. Food products, such as whole salmon sides or complete roast beef can be packed without problems – but the long chamber of this packaging machine also offers various applications for special non-food products.
Our floor standing and caster-wheeled vacuum chamber machines are conceived for high-volume commercial and food service distribution.
It have two different sealing bar which form a “L” type to satisfy different bag size and bag length requirements.

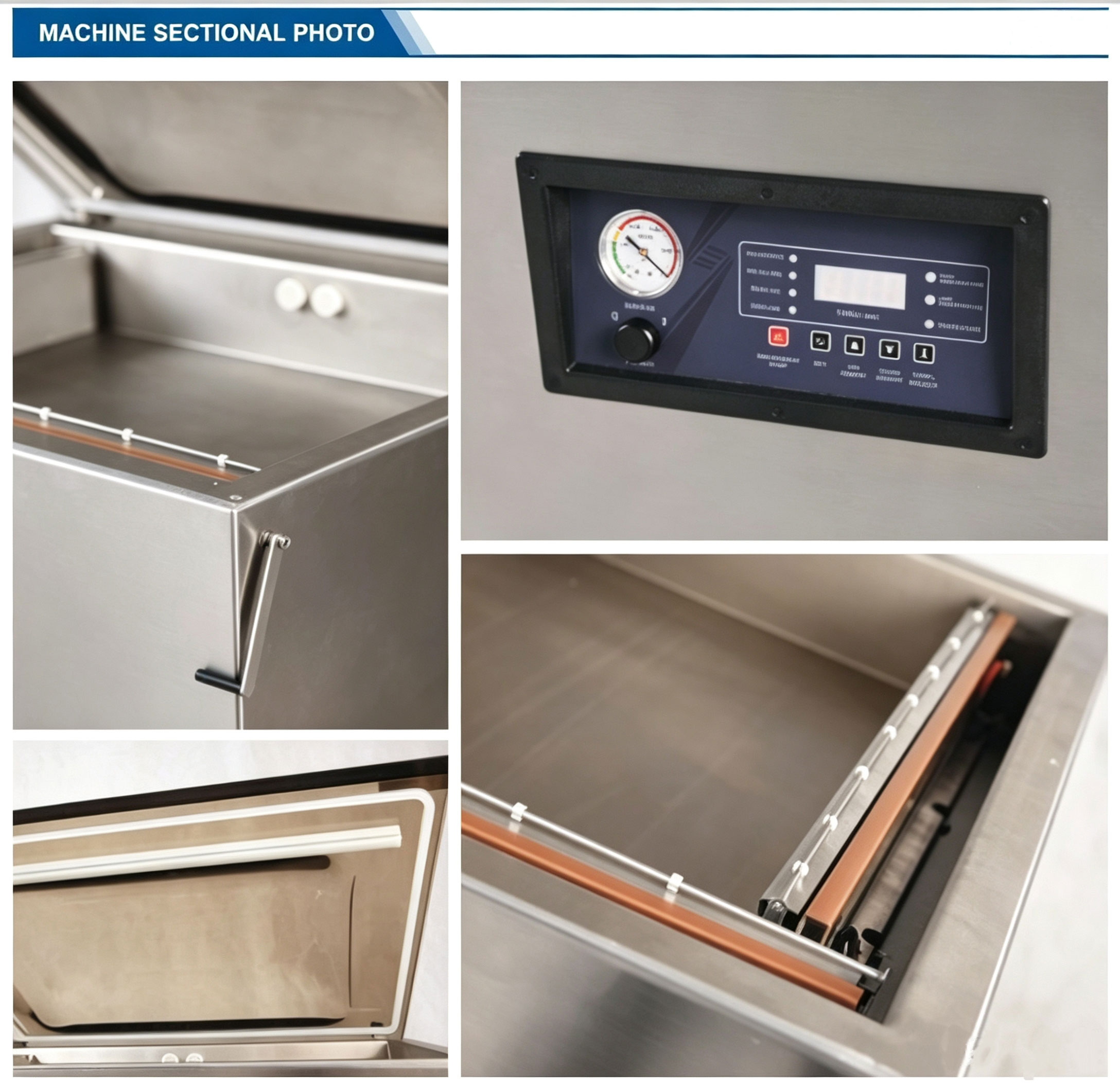

· Extremely easy to operate.
· All clear acrylic chamber lid.
· Rugged all stainless steel chassis.
· Floor type machine conveniently equipped with casters for transportation.
· All areas in contact with product made with PTFE or stainless steel.
· Equipped with two sealing bars with one extra wide seal element each.
· Double vacuum pump operation.
· Bars are in L-configuration.
· Equipped with vacuum gauge for vacuum level indication.
· Fastening assembly to secure lid for machine storage or transportation.
Model | DZ-800/2L | DZ-900/2L | DZ-1000/2L |
Voltage (V/Hz) | AC 380/50、220/50 | ||
Motor power (W) | 1500 | ||
Sealing Power (W) | 1000 | 1500 | 1500 |
Ultimate Vacuum Pressure (Kpa) | 1 | ||
Sealing Width (mm) | 10 or 2×3 or 3+ cut-off | ||
Chamber Dimension (L×W×H) (mm) | 806×606×190 | 906×606×190 | 1006×606×190 |
Vacuum Pump capacity (m³/h) | 40 | ||
Material for Vacuum Chamber | SUS304 | ||
External Dimensions (L×W×H) (mm) | 930×733×1010 | 1030×733×1010 | 1130x733x1040 |
Net Weight (Kg) | Approx.190 | Approx.202 | Approx.222 |
