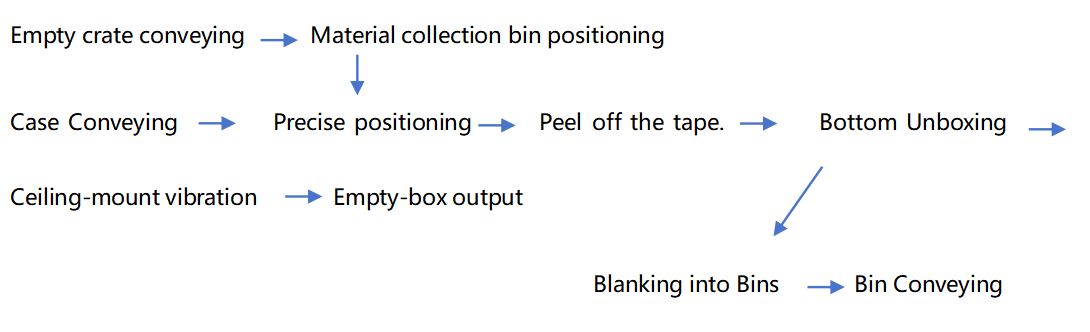

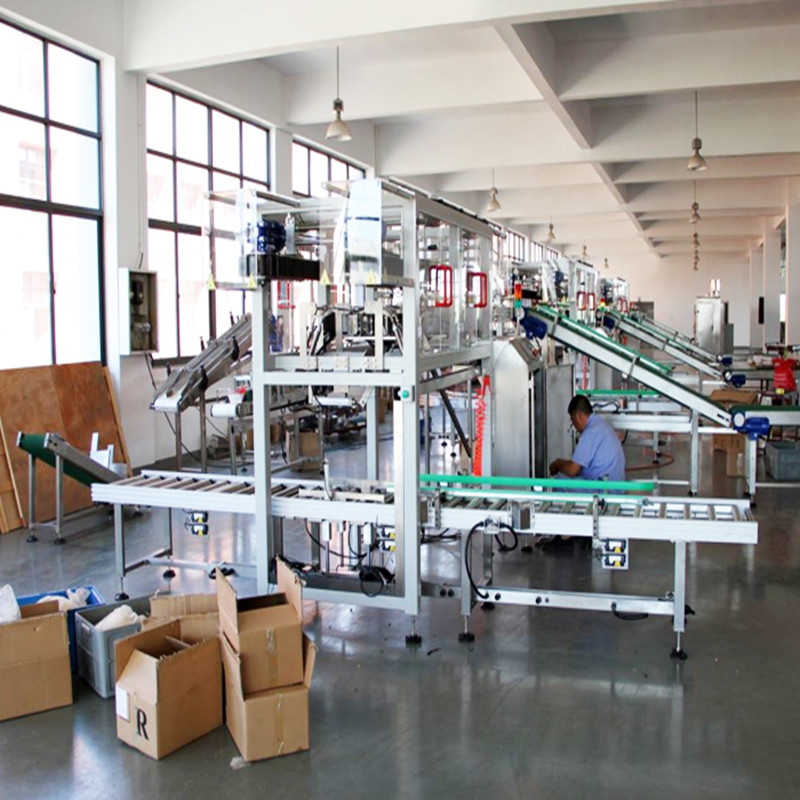

Production Line Process Flow

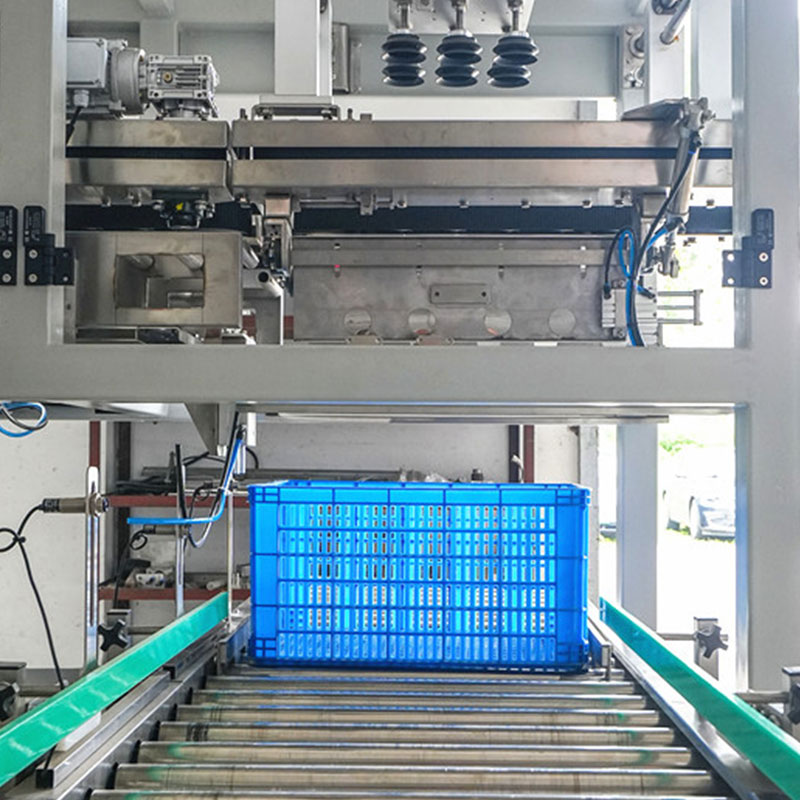

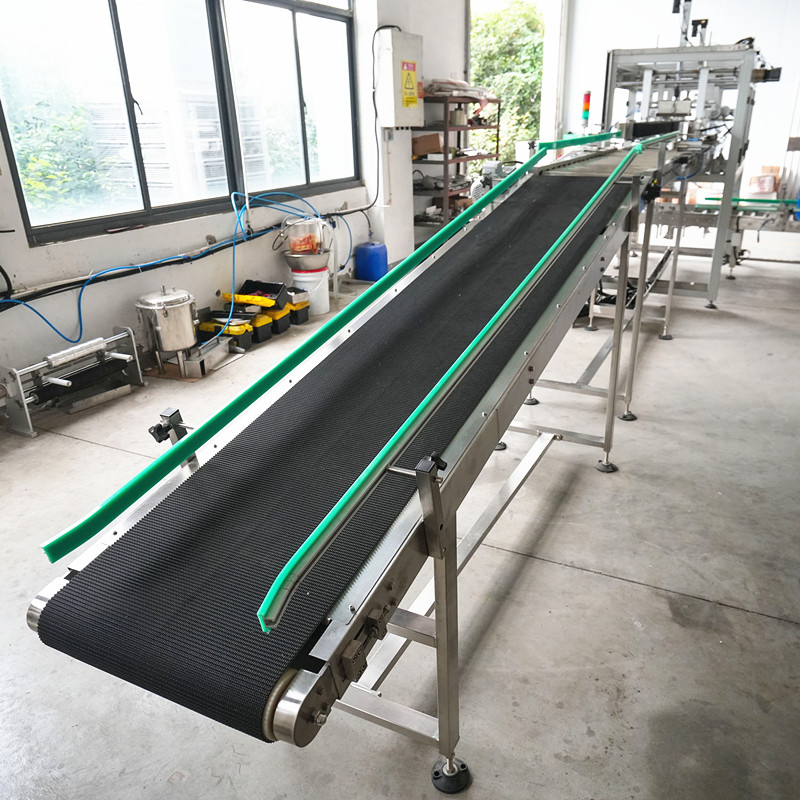

The automated carton-opening production line performs functions such as carton separation, opening, basket feeding, filling, and vibration-based settling. It automatically removes the sealing tape from the carton, transfers the contents into a turnover bin or drum, and conveys the load via an automated logistics line to the required workstation.

Key Performance and Structural Features

1. Cost Reduction and Efficiency Improvement

Capable of opening 5–15 cartons per minute; reduces the required workforce from the usual 8–20 people down to just 3–5, thereby lowering labor costs and intensity while boosting productivity.

2. Easy Changeover

Accommodates various carton sizes and specifications; allows for quick and simple switching between packaging formats to enable flexible production.

3. Simultaneous Top and Bottom Opening

Handles various sealing patterns—such as "I-style," "Cross-style," and "H-style"—by simultaneously removing tape from both the top and bottom of the carton; facilitates empty carton stacking and improves on-site workspace management.

4. Safety

Features a human-machine isolation design for fully enclosed operation; includes intelligent emergency stop capabilities triggered by carton jams or abnormal vibrations.

5. Precision

Utilizes intelligent positioning and movement control, achieving a carton-opening success rate of ≥99%; ensures damage-free opening to prevent scratches on the inner packaging.

6. Intelligence

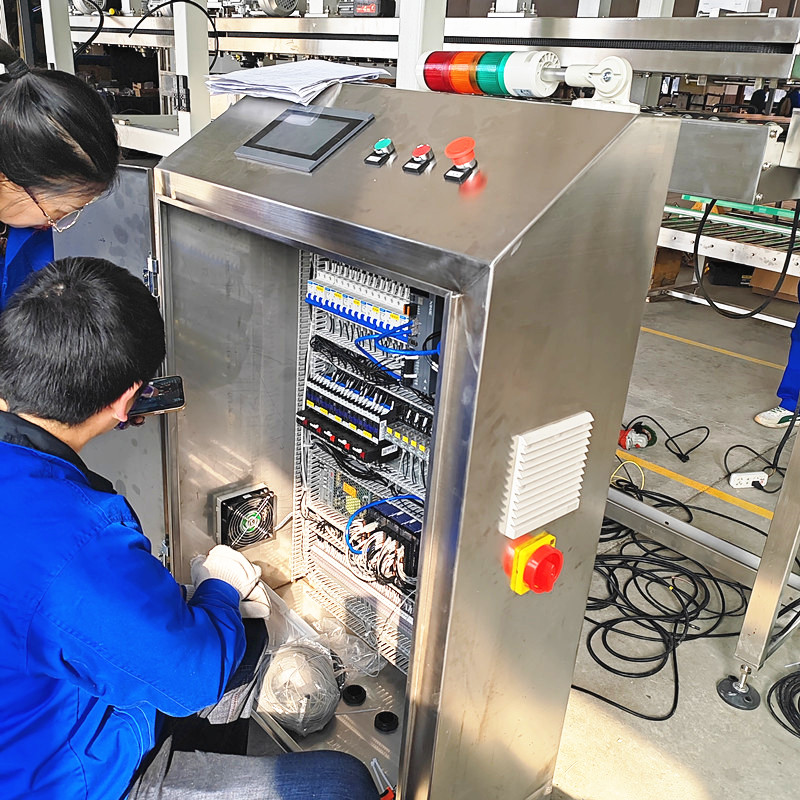

The system employs PLC-based intelligent control, a color touchscreen HMI, servo motor and pneumatic cylinder drives, and photoelectric tracking technology.
