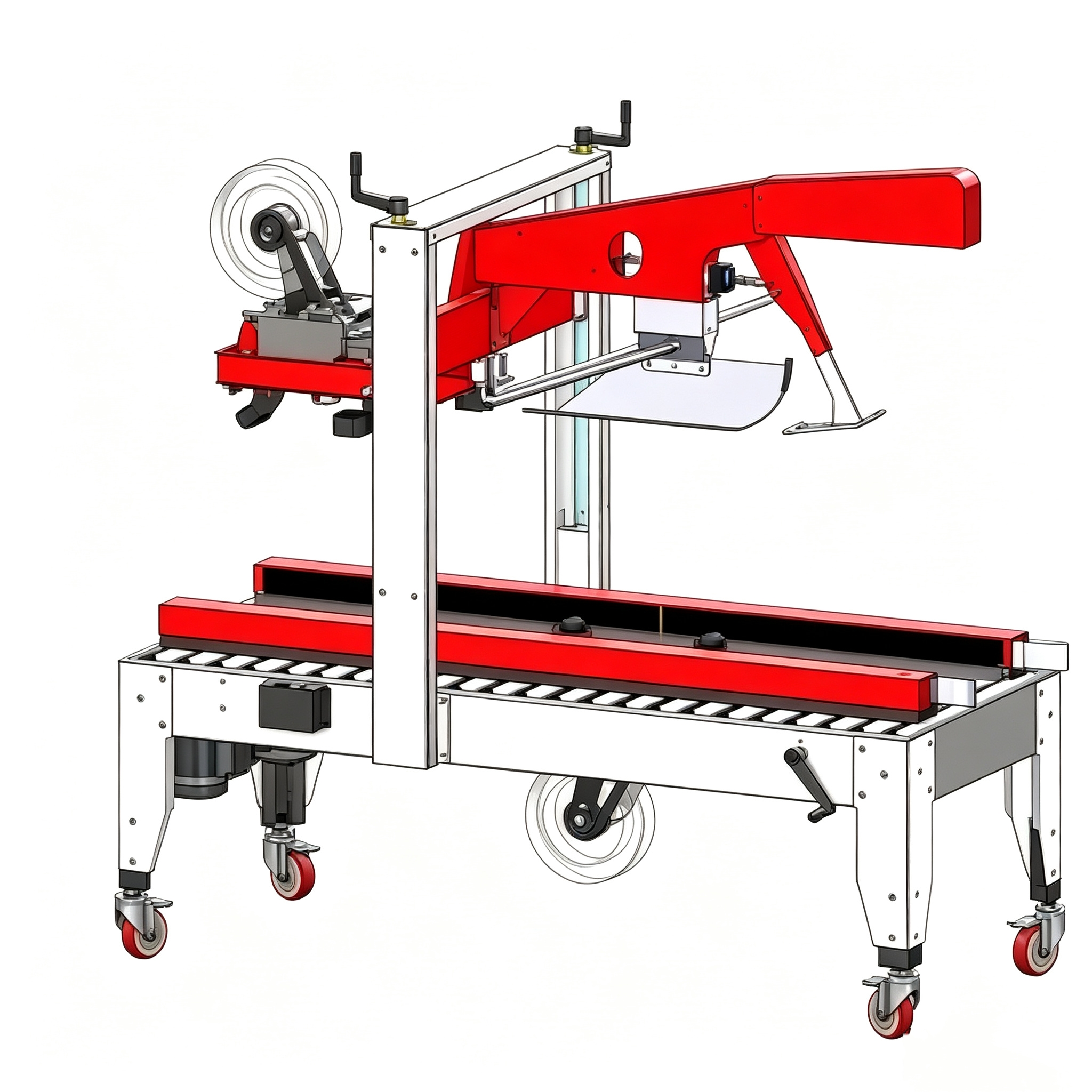

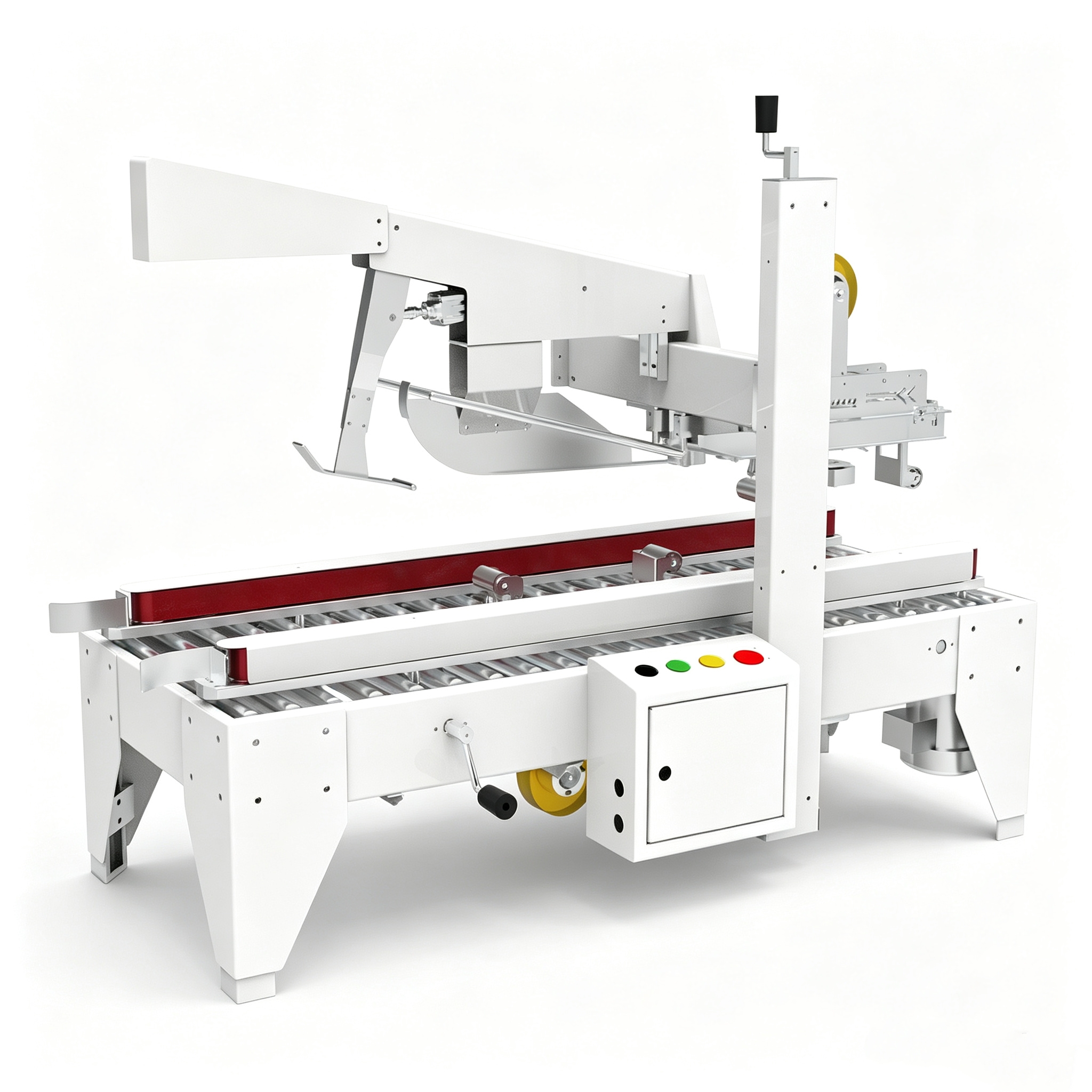

This machine simultaneously seals the top and bottom of cartons. It can operate as a standalone unit or be integrated into a production line, making it suitable for a wide range of industries. Featuring a precision-engineered, robust structure and stable operation, it delivers a smooth, uniform, and aesthetically pleasing seal.

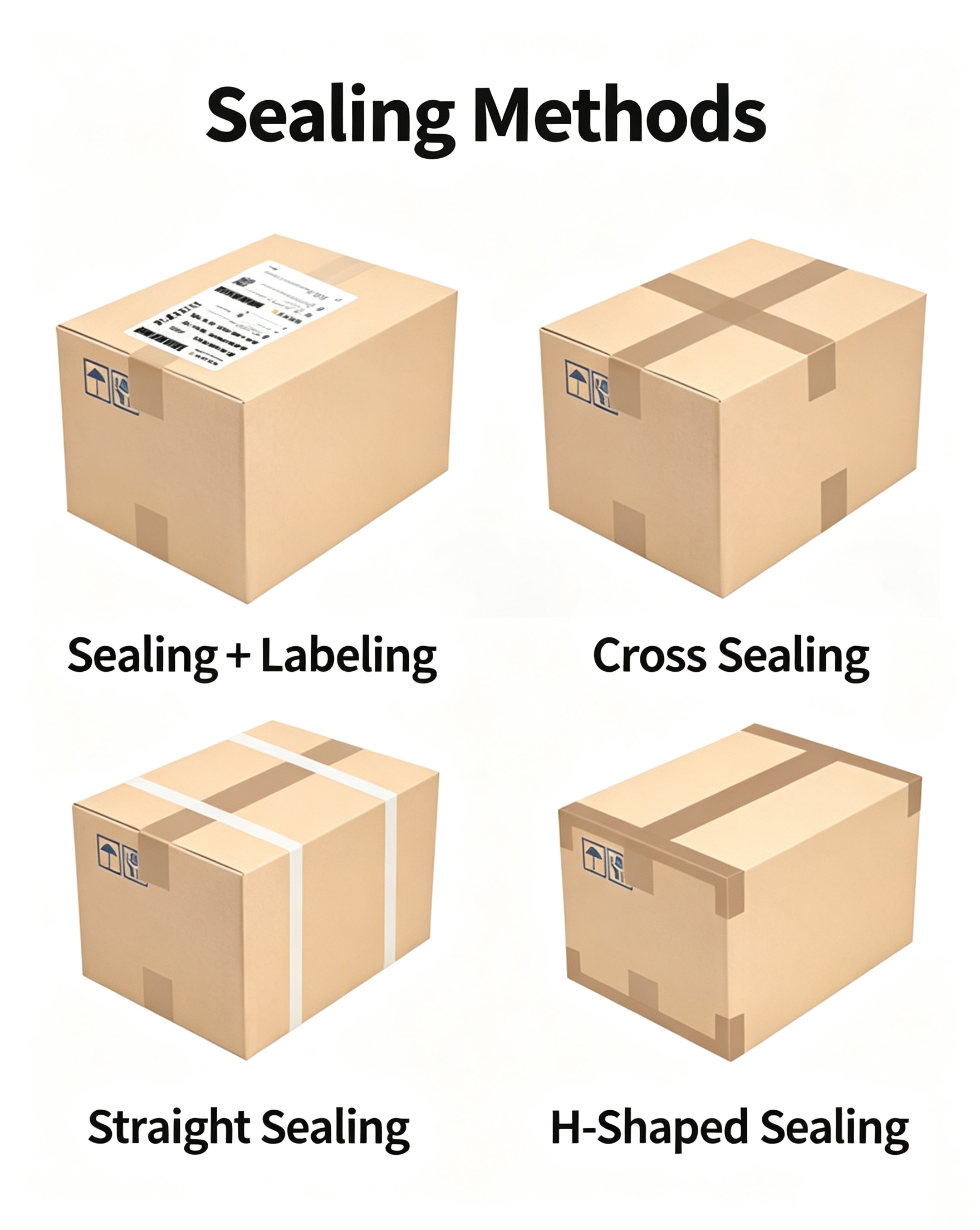

1. Automatically folds top flaps and completes top and bottom straight-line sealing in a single pass;
2. Equipped with a blade guard to prevent accidental injury during operation;
3. Precision-engineered, robust tape applicator mechanism; operates smoothly and offers exceptional durability;
4. Driven by side belts for economical, fast, and stable top and bottom sealing;
5. Manual adjustment of width and height to accommodate different carton sizes;
6. Features an automatic sleep mode for energy conservation.
Specifications | Specifications |
Power supply | AC 220/380V, 50/60Hz, 400W |
Air supply | 6 kg/cm², 90 NL/min |
Carton specifications | Min: L200 x W120 x H120 mm; Max: L600 x W500 x H500 mm |
Machine dimensions | L1750 mm x W850 mm x H1600 mm |
Table height | 600 mm (customizable) |
Sealing efficiency | 10–15 cartons/minute |
Belt speed | 20 m/min |
Tape type | BOPP and other types of film |
Tape width | 3.6–7.2 cm |
Operating noise | ≤75 dB |
