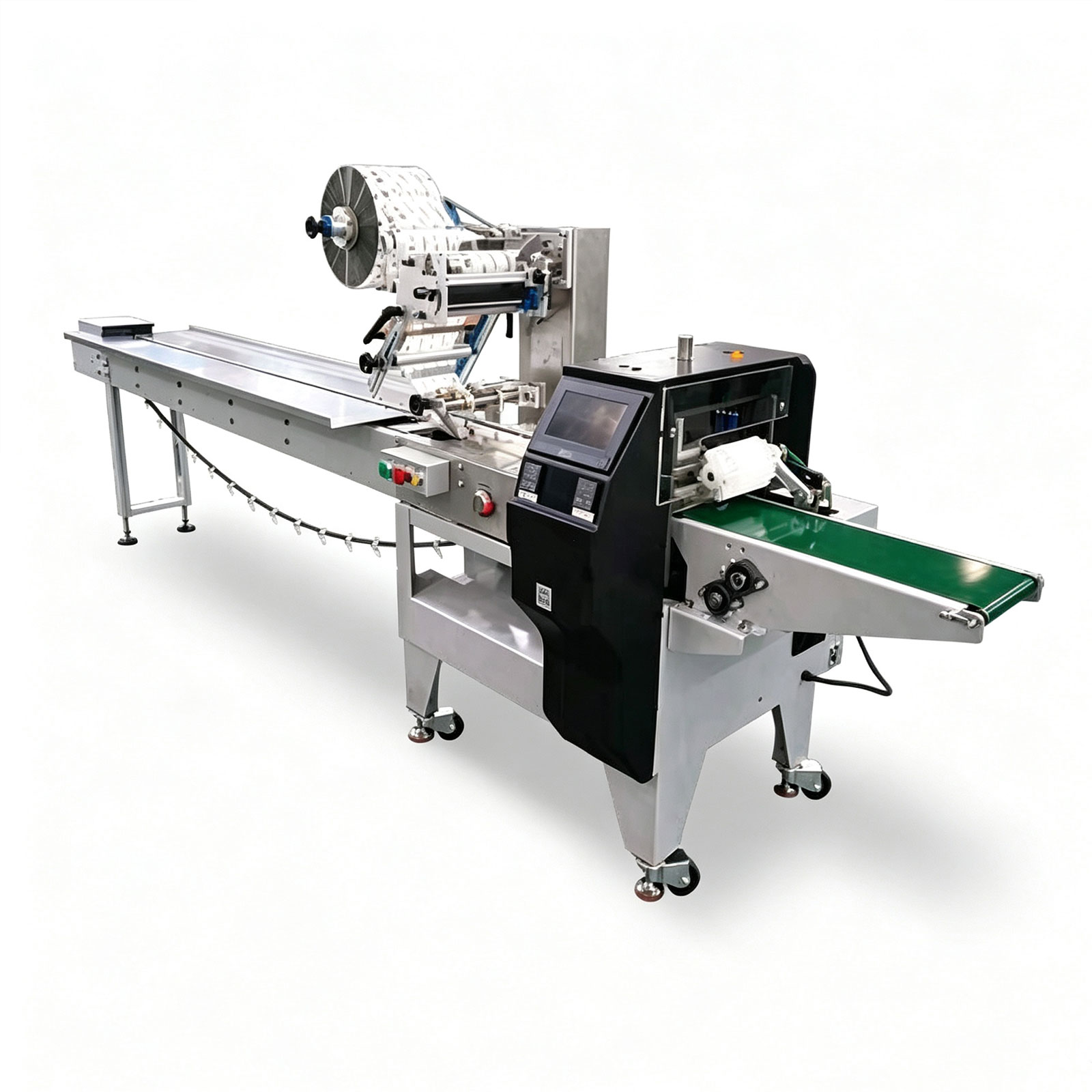

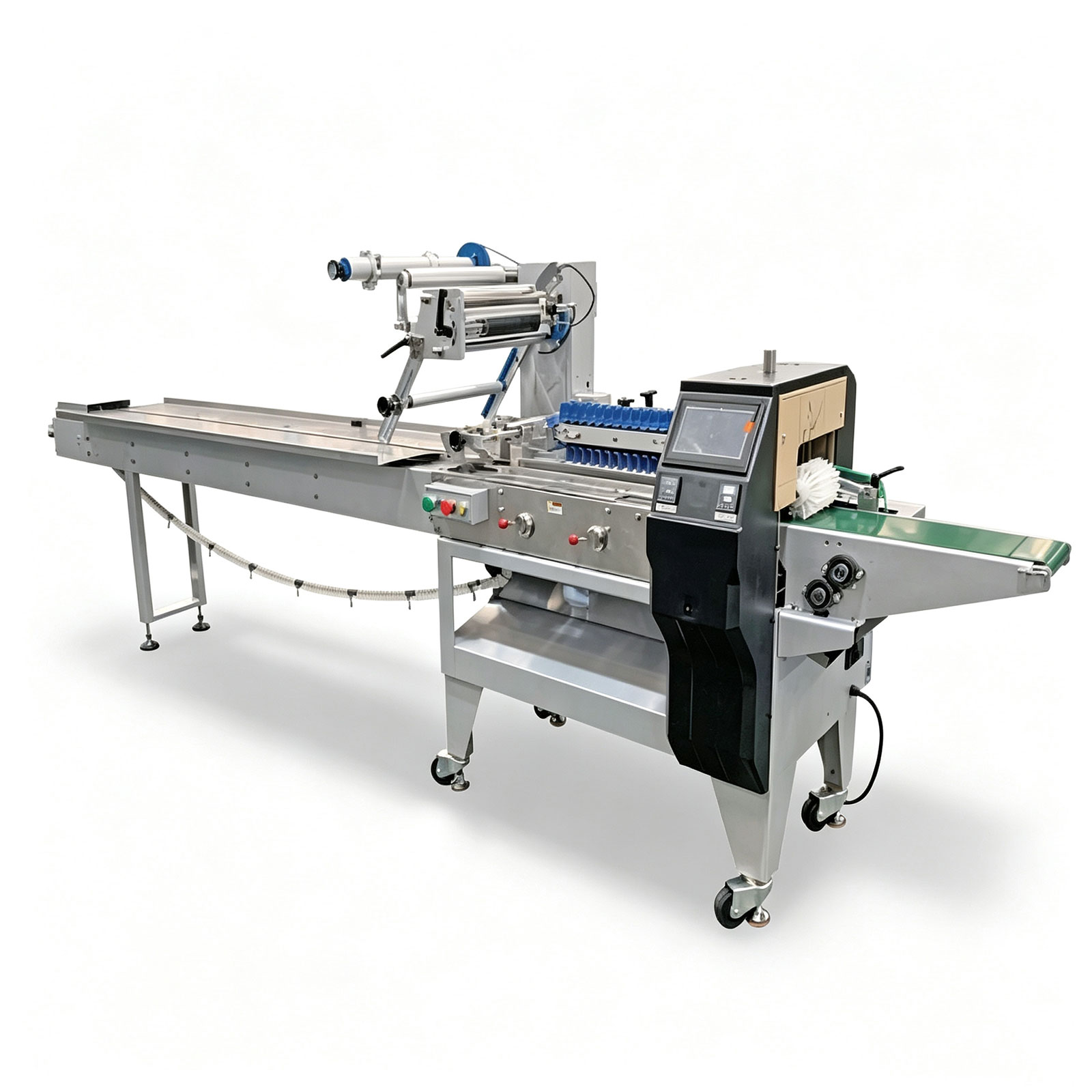

HK100 Pillow Type Automatic Horizontal Packaging Machine

Scope of Application

Product Features

Technical Specifications

Applications

It is suitable for packing all kinds of irregular articles, sticky articles and solid objects.

1. Food: noodles, egg rolls, sausages, squid, bread, moon cakes, preserved fruit, soft candy, etc.

2. Chemical categories: soap, tape, etc.

3. Electrical switches: power strips, switches, etc

4. Other categories: essential oils, pocket notebooks, boxed pens, medicines, etc.

1. The whole machine is controlled by three servos;

2. Seven-inch touch screen display, easy operation and clear working status;

3. A variety of product parameters and formulas can be stored, which can be downloaded and used without repeated settings;

4. Automatic adjustment of bag length without manual setting;

5. Higher precision and accurate sealing and cutting position;

6. Stop position and print position can be set arbitrarily;

7. Simple mechanical structure, convenient and intuitive debugging and low after-sales maintenance cost;

8. The packaging range is expanded to adapt to a variety of product specifications;

9. In line with the structure of human engineering mechanics, can be convenient to quickly clean up,maintenance, overhaul of the machine;

10. Reduce the labor intensity of the operator, effectively improve production efficiency.

Model	HK-100（Single jaw）	HK-100（ Double jaws）	HK-100（Triple jaws）
Package length	120-300 mm	60-200 mm	45-100 mm
Package width	35-80 mm	35-80 mm	35-70 mm
Package height	5-35 mm	5-35 mm	5-30 mm
Packing speed	30-150 bags/min	30-250 bags/min	30-450 bags/min
Film size	90-220 mm	90-220 mm	90-220 mm
Packaging film type	OPP/CPP、PT/PE、KOP/CPP、VMBOPP、VMCPP、VMPET etc.
Type of power supply	220V 50HZ	220V 50HZ	220V 50HZ
General power	3.1 KW	3.8 KW	4.5 KW
Weight	360 Kg	360 Kg	360 Kg
Dimension	4000 × 930 × 1370 mm	4000 × 930 × 1370 mm	4000 × 930 × 1370 mm
