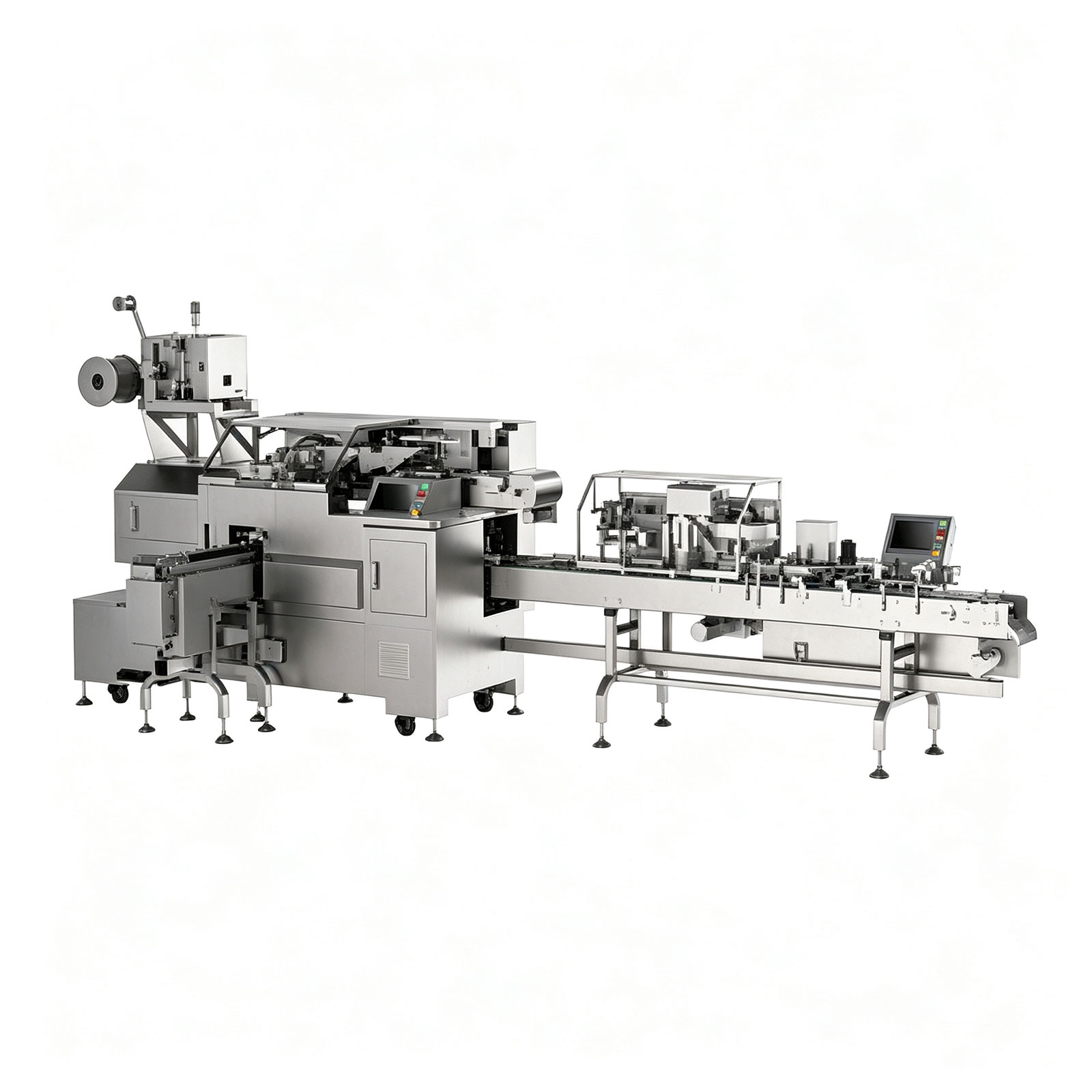

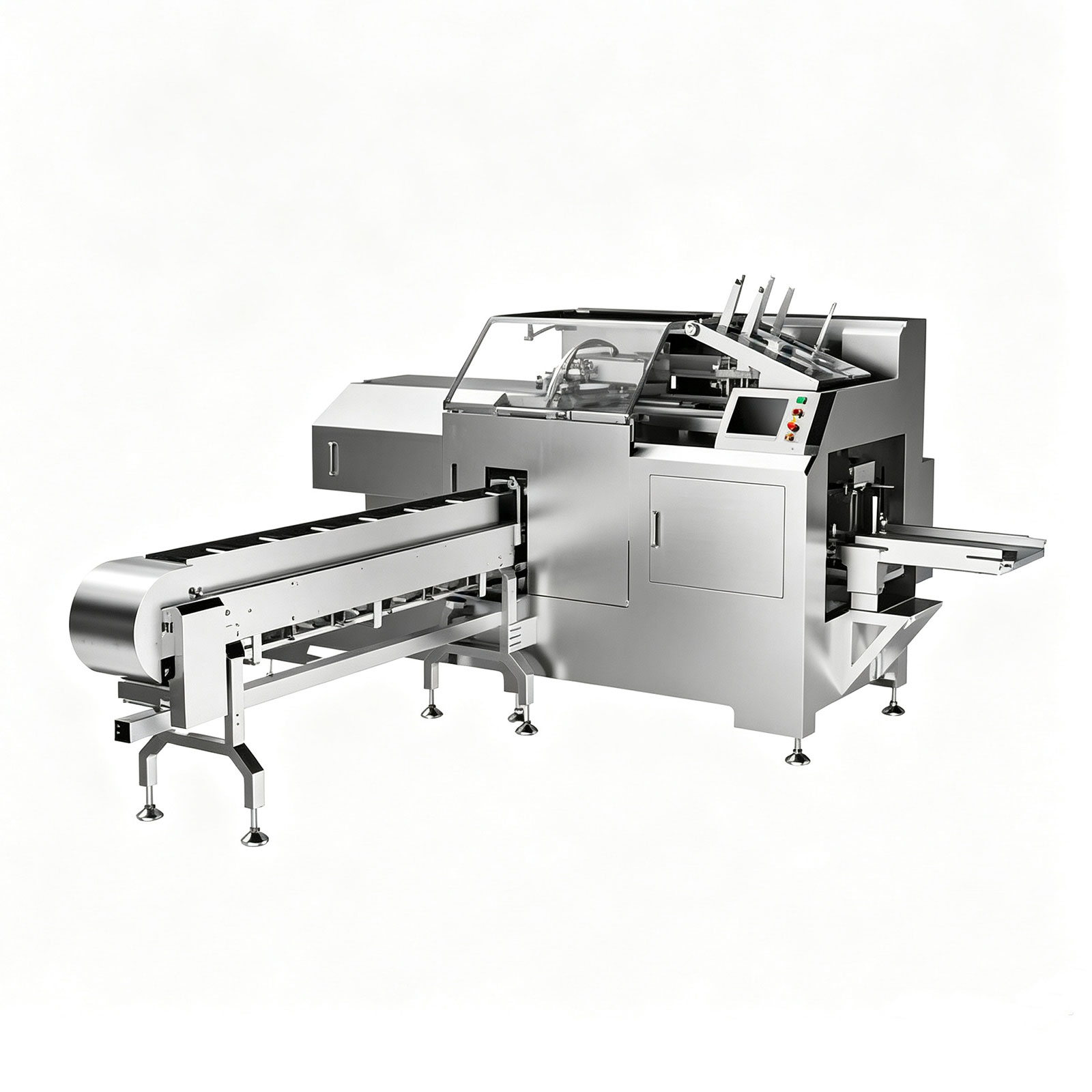

Suitable for packaging items such as bread, cookies, coffee sticks, electronic products, cosmetics, and cards using pre-made bags. The system features fully automated processes—including bag retrieval, feeding, opening, product insertion, and package discharge—within a compact, aesthetically pleasing design. It is ideal for the secondary packaging of pre-packaged food products.
1. Equipped with a servo control system; the touchscreen HMI offers a clear display and simplifies maintenance;
2. Features an automatic product feeding and conveying system, facilitating seamless integration with automated production lines and reducing labor costs;
3. Utilizes photoelectric sensors for automatic detection and servo tracking; the system prevents bag opening if a positional deviation is detected, thereby maximizing packaging material savings;
4. Characterized by a high degree of automation, specialized design, high production efficiency, and a low failure rate.
Item | Specifications |
Speed | 15–30 bags/min |
Package dimensions: Length | 250–350 mm |
Package dimensions: Width | 100–220 mm |
Package dimensions: Height | 40–110 mm |
Total Power | 8 kW |
Air supply pressure (kg/cm²) | 6 kg/cm² (air consumption: 600 L/min) |
Machine net weight (kg) | 600 |
Machine overall dimensions (L × W × H) (mm) | 2450 × 1100 × 1500 |
Power supply type | 220 V, 50/60 Hz |
Packaging material | OPP/CPP, PT/PE, KOP/CPP, metallized film, aluminum film |
