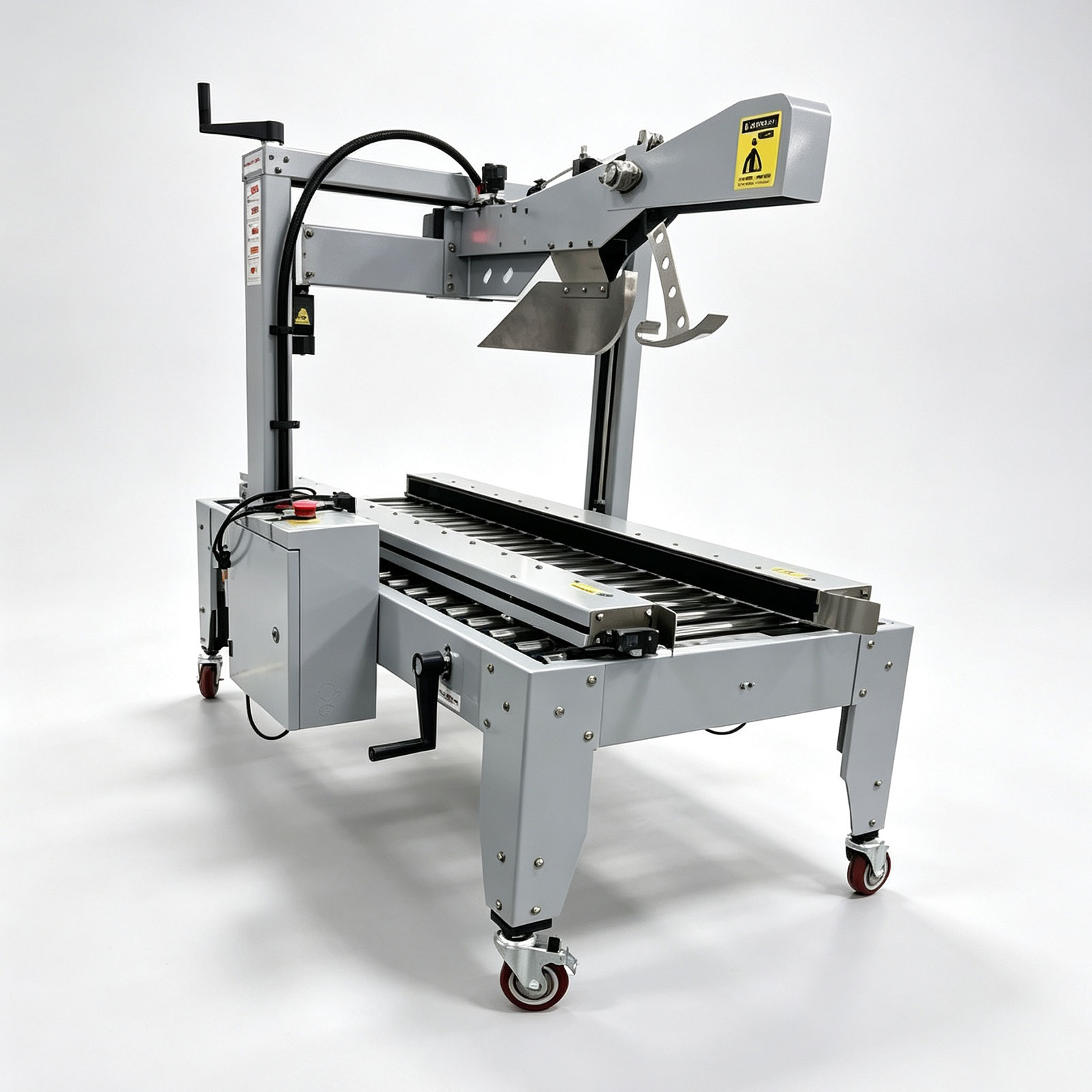

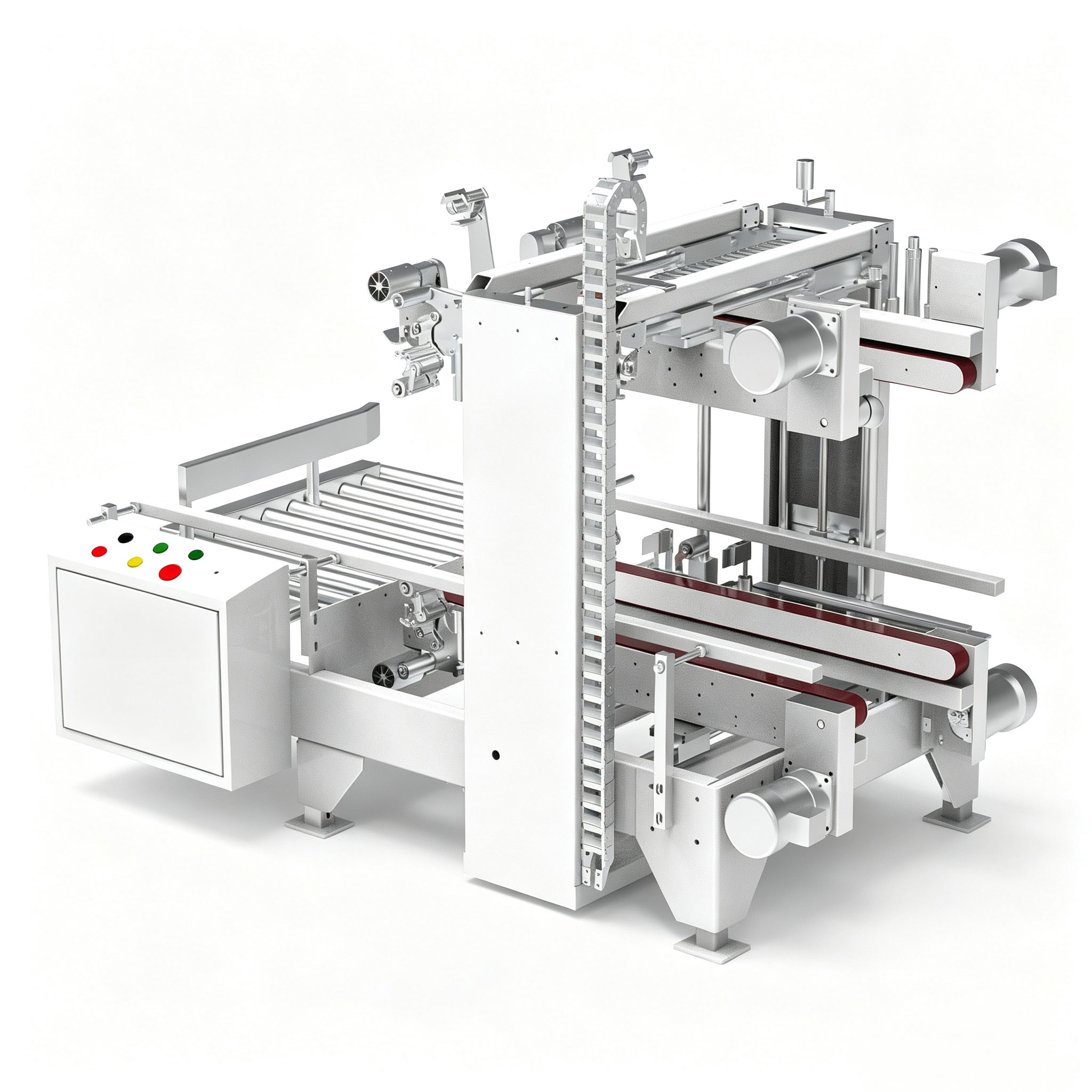

This machine simultaneously seals the top and bottom of cartons. It can operate as a standalone unit or be integrated into a production line, making it suitable for a wide range of industries. Featuring a precision-engineered, robust structure and stable operation, it delivers a smooth, uniform, and aesthetically pleasing seal.
1. Automatically folds top flaps and completes top and bottom straight-line sealing in a single pass;
2. Equipped with a blade guard to prevent accidental injury during operation;
3. Precision-engineered, robust tape applicator mechanism; operates smoothly and offers exceptional durability;
4. Driven by side belts for economical, fast, and stable top and bottom sealing;
5. Manual adjustment of width and height to accommodate different carton sizes;
6. Features an automatic sleep mode for energy conservation.
Item | Specifications |
Power supply | AC 220/380V 50/60Hz 200W |
Air supply | 6 kgf/cm²; 90 NL/min |
Carton specifications | Min: L200 x W120 x H90 mm; Max: L500 x W400 x H400 mm |
Machine dimensions | L1650 mm x W1050 mm x H1350 mm |
Table height | H450/600/750 mm (customizable) |
Sealing speed | 25–35 cartons/min |
Belt speed | 28–30 m/min |
Tape type | BOPP and other types of film |
Tape width | 3.6–7.2 cm |
Operating noise | ≤75 dB |
