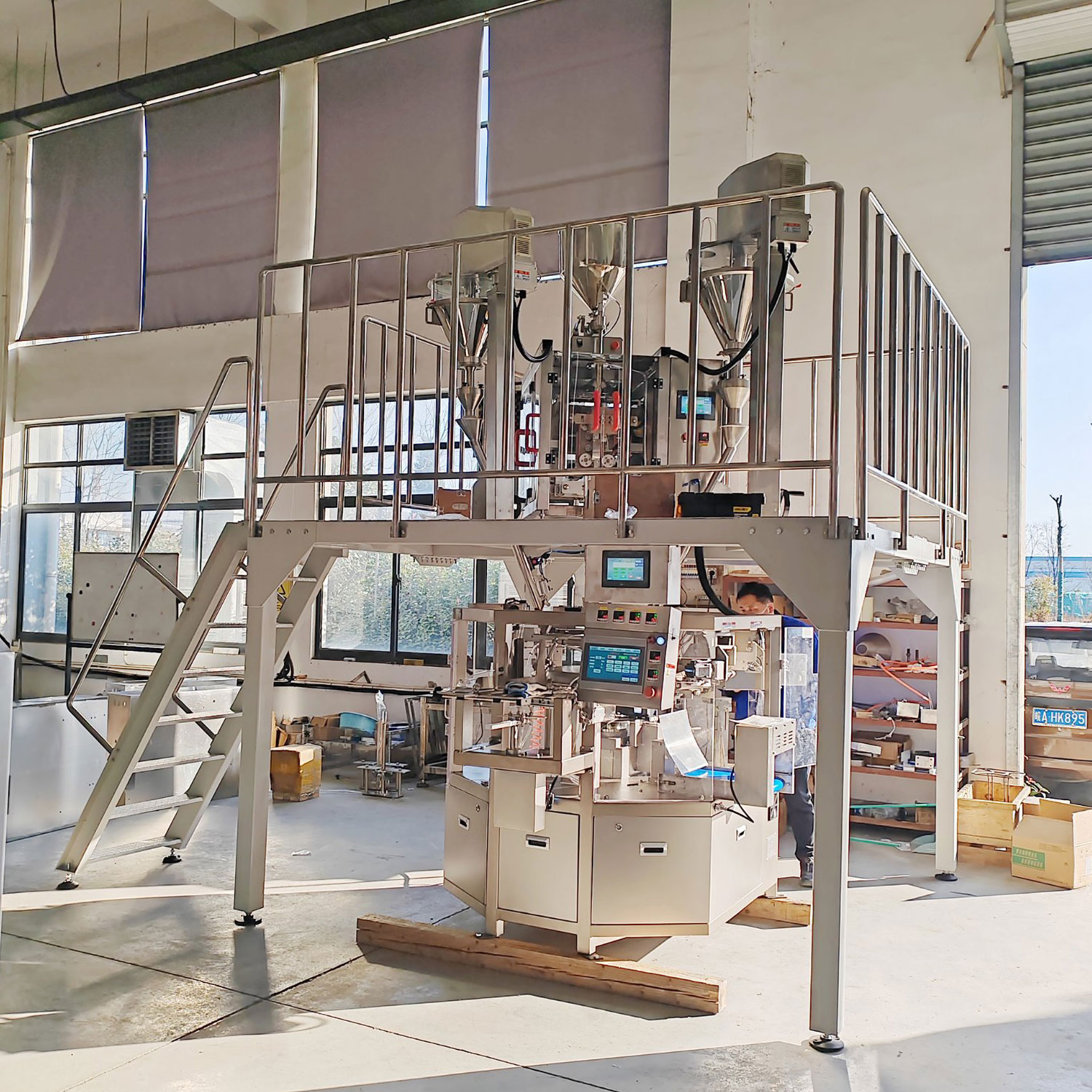

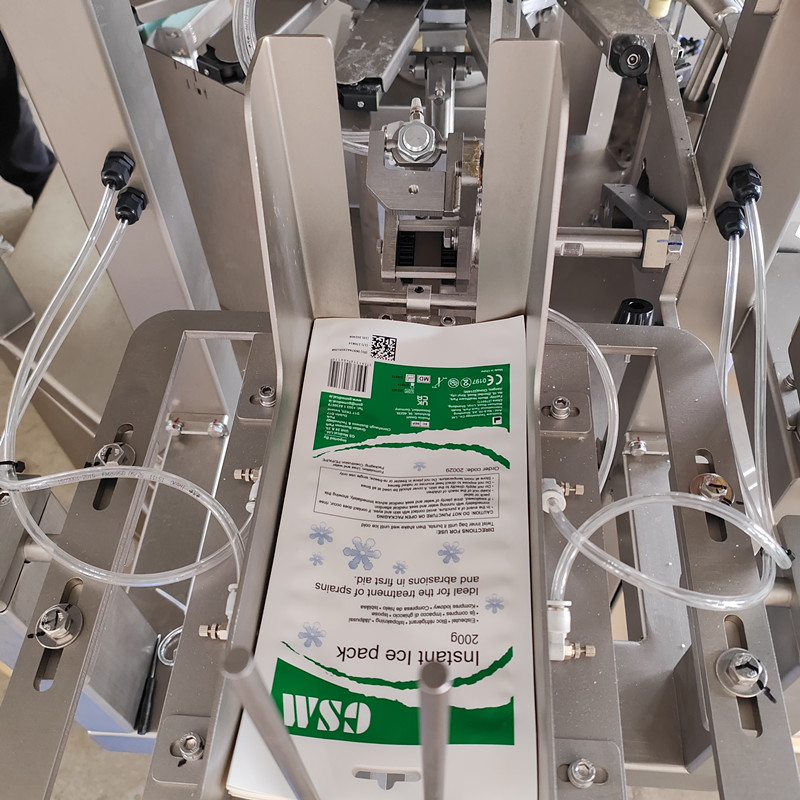

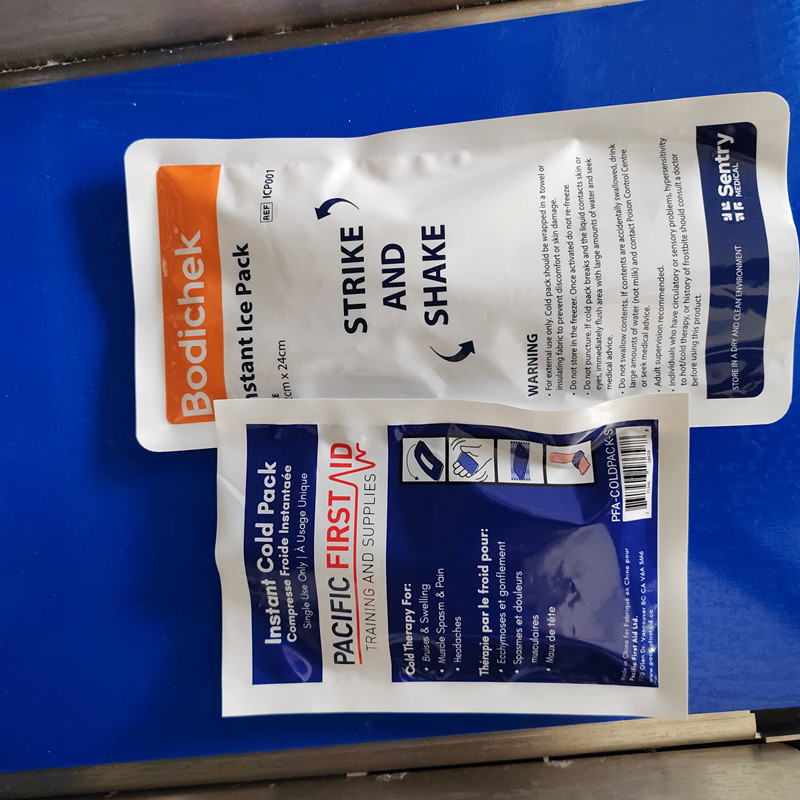

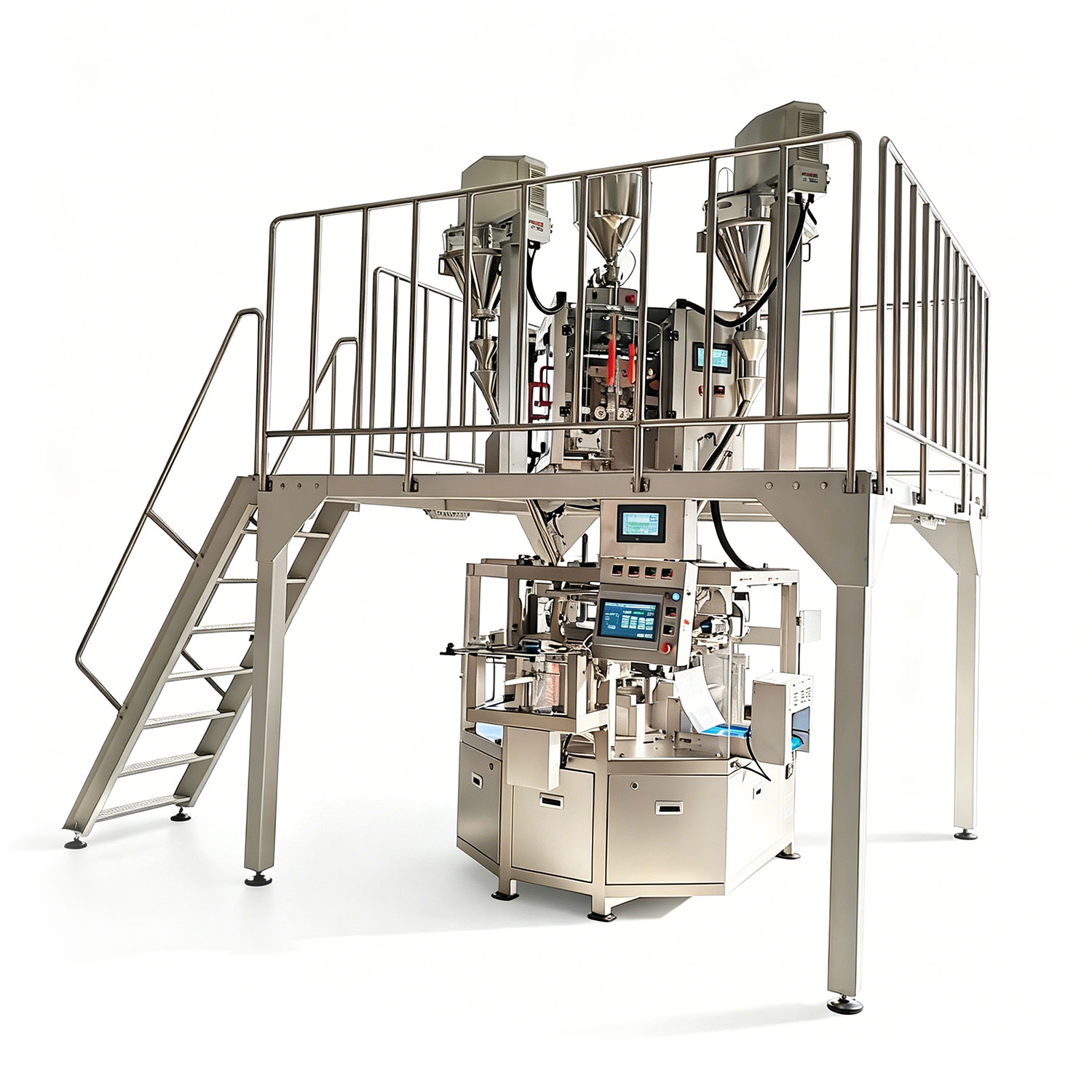

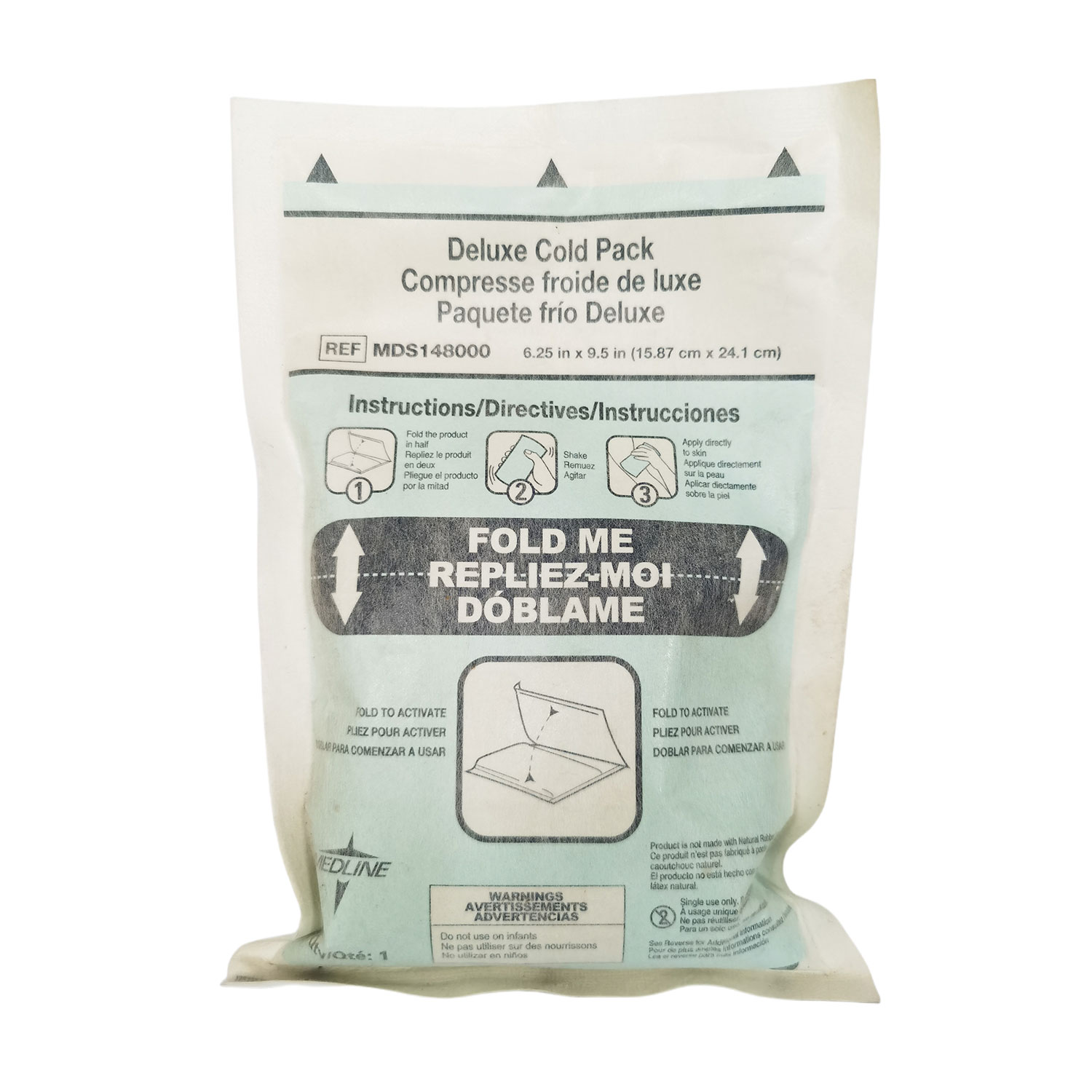

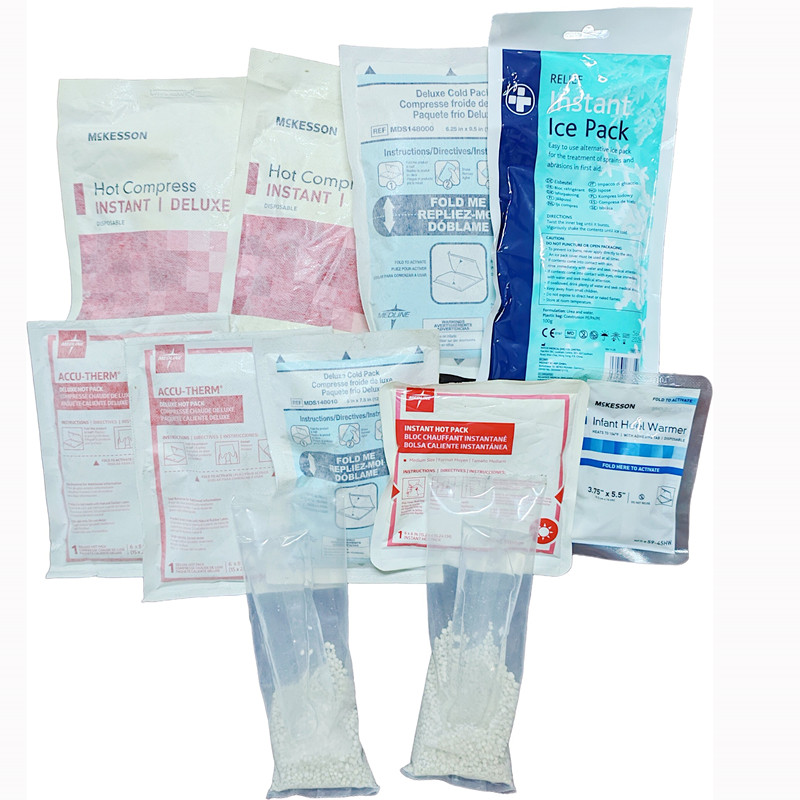

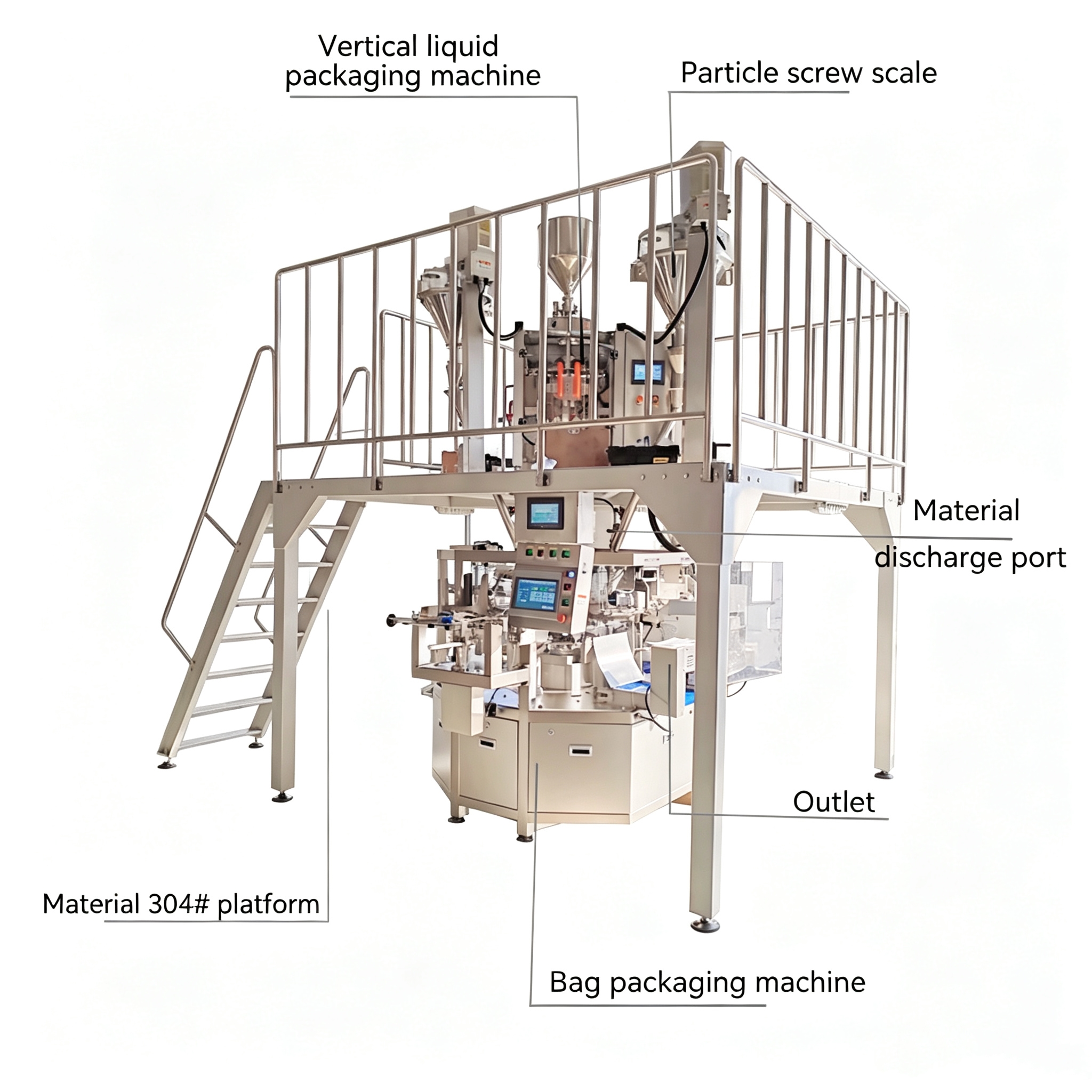

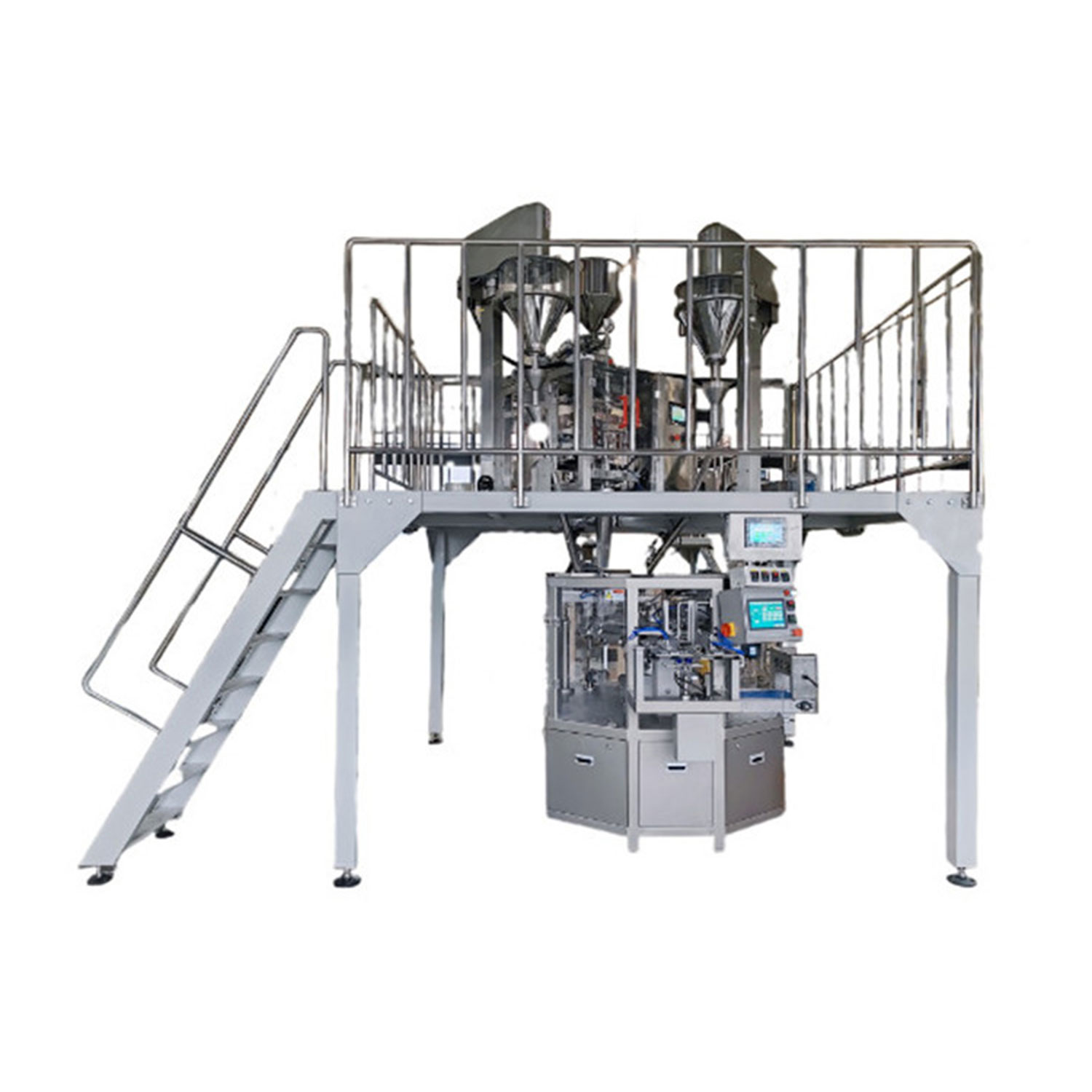

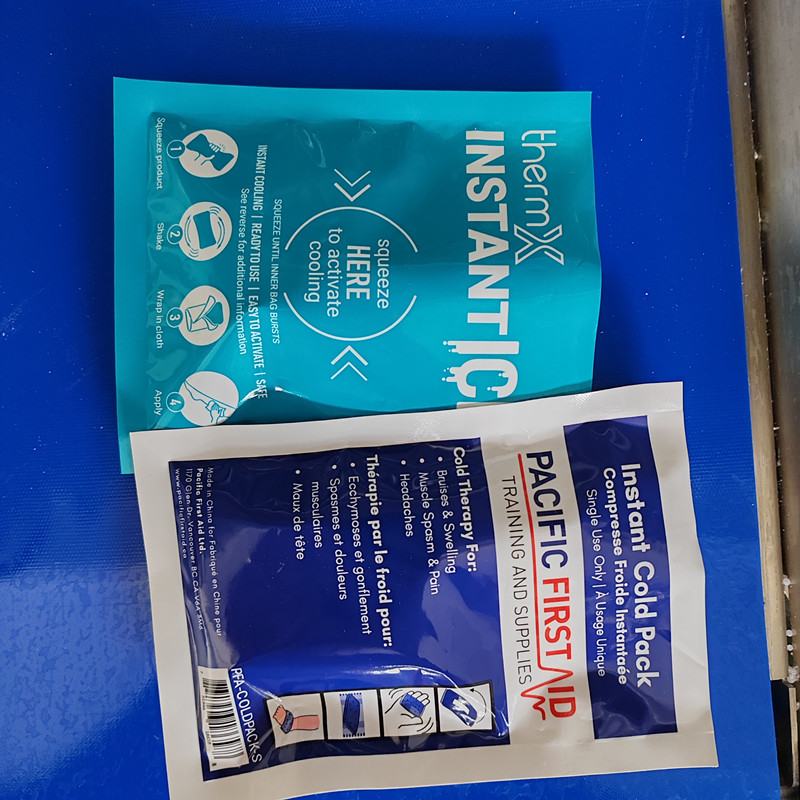

This production line—also known as a packaging solution for medical instant ice packs—is primarily designed for the "bag-in-bag" packaging of hot/cold packs containing granular or powdered materials.
 |  |  |  |

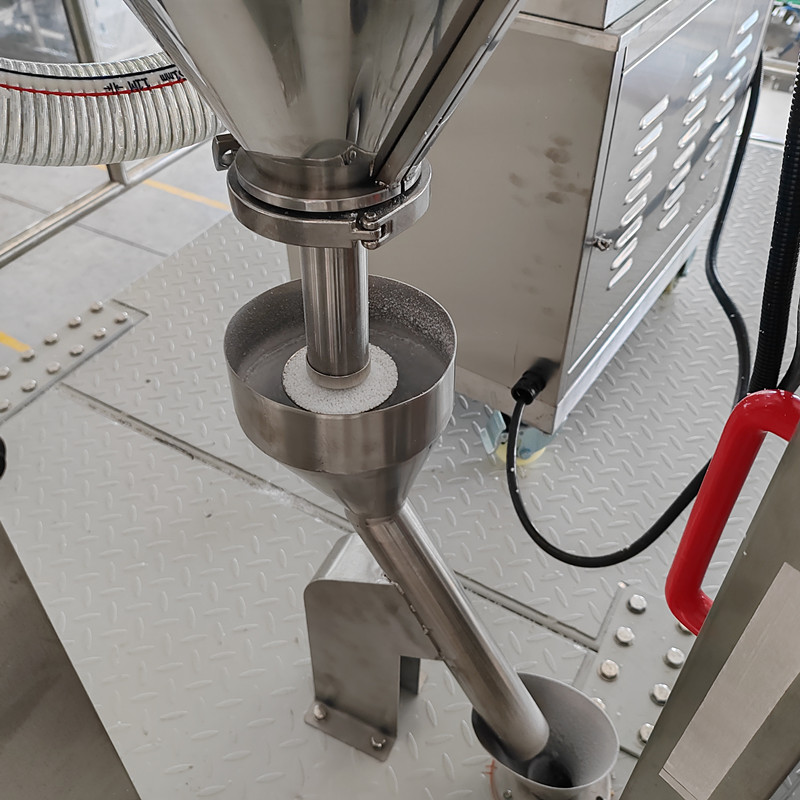

Equipped with a high-precision metering system (e.g., piston pump, electronic pump, or screw metering), the error margin is controlled within ±1%, with an output of 30–40 bags per minute.
Versatile Specifications: Supports a wide range of bag sizes (e.g., length ≤400mm; width 80–210mm) and is compatible with both standard medical ice packs and custom specifications.
Material Compatibility: Handles various packaging materials, such as composite films and paper-based films, meeting medical-grade sealing and leak-proof requirements.

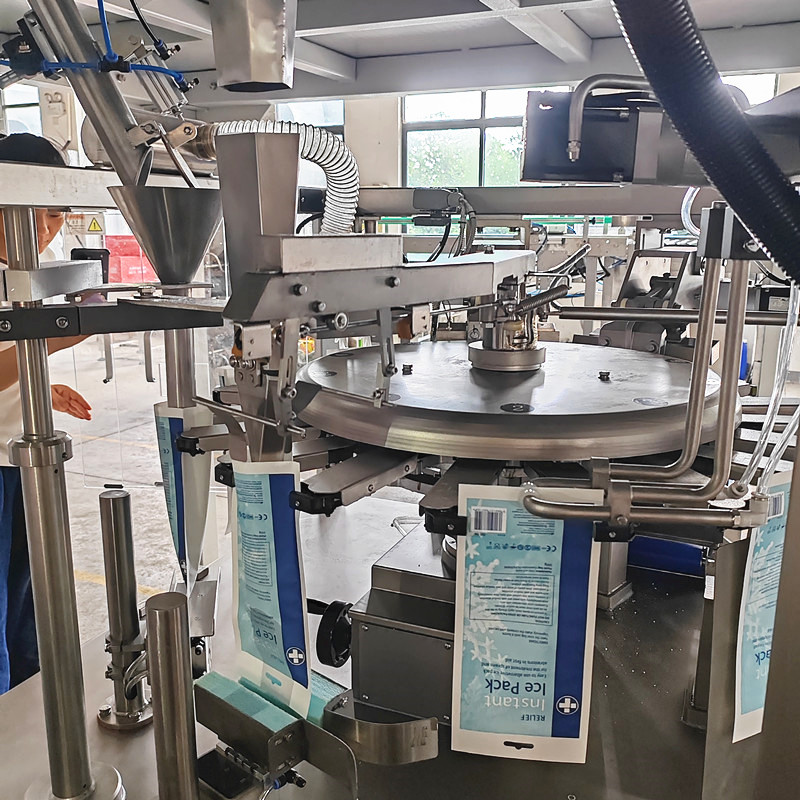

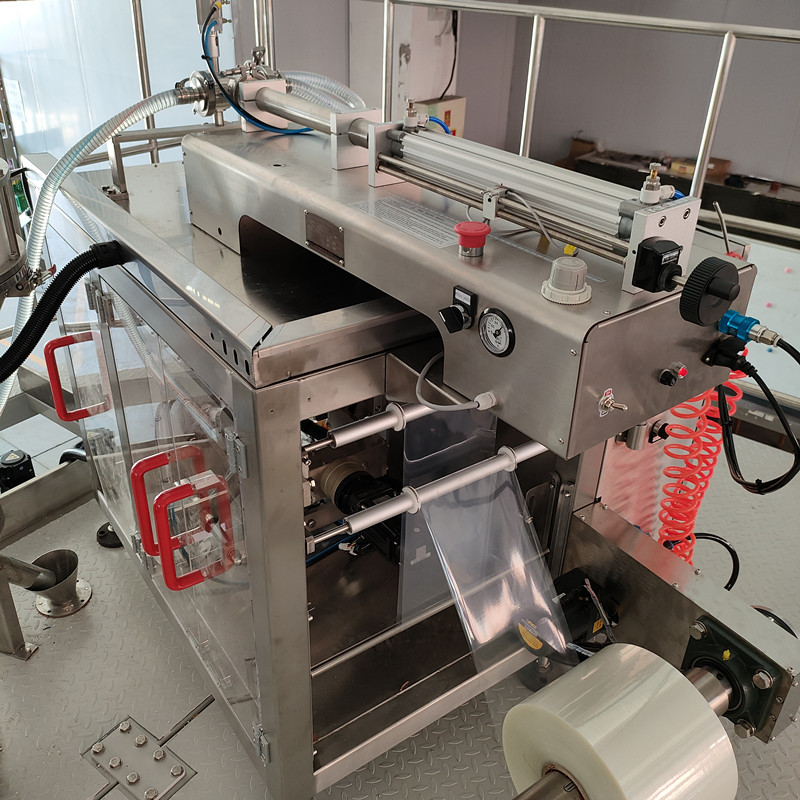

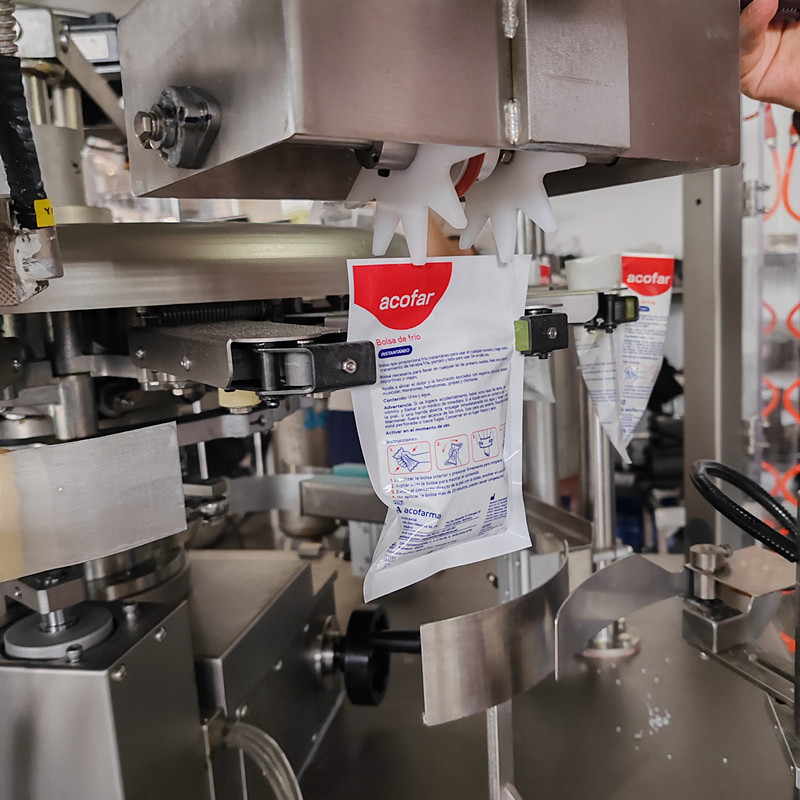

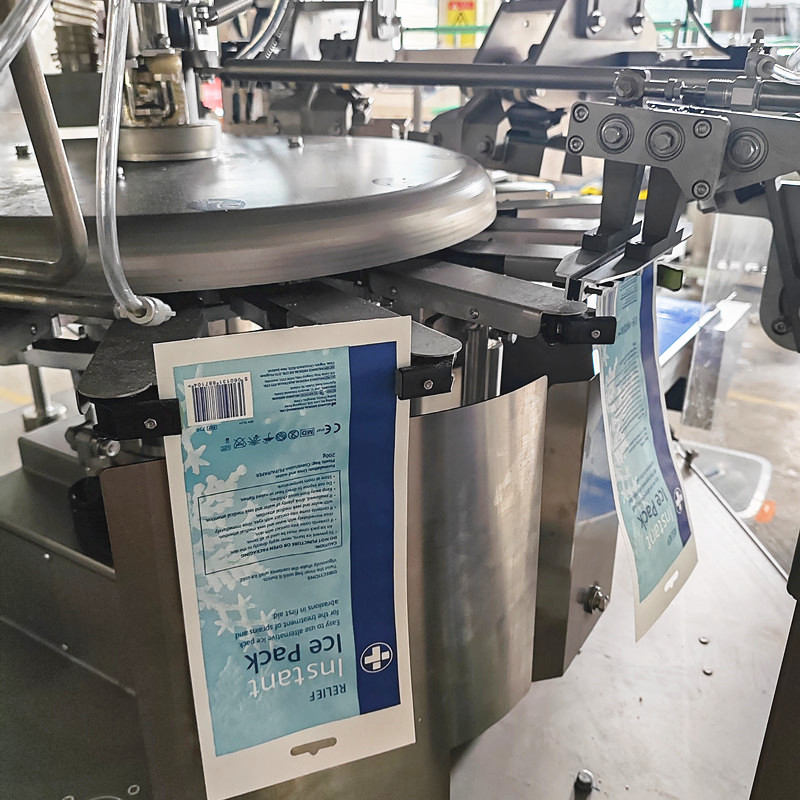

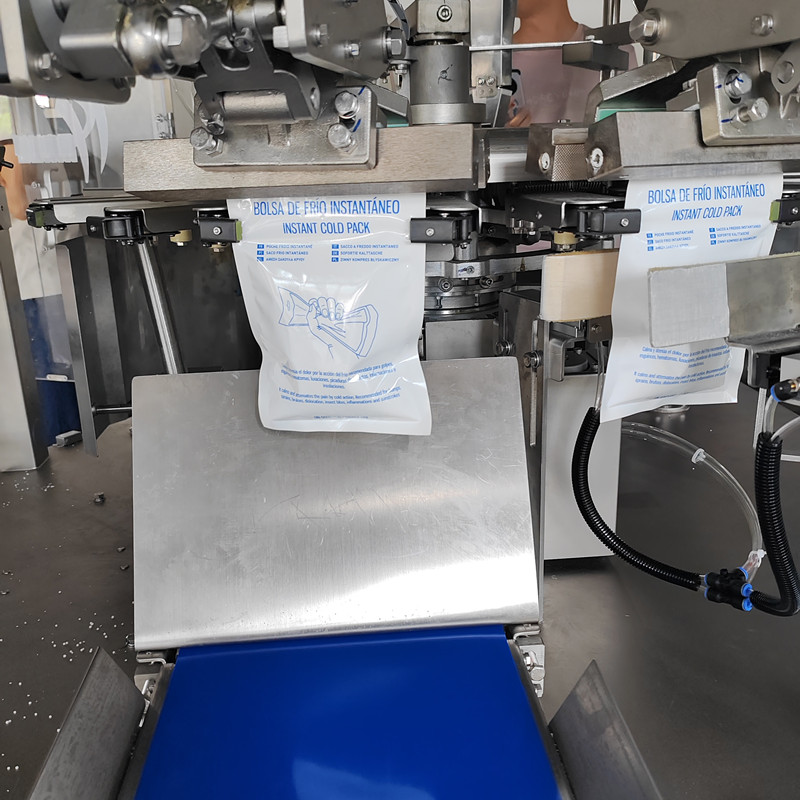

Bag Making & Sealing: Supports various bag types—including stand-up pouches, handle bags, zipper bags, and paper-based composite bags—to meet diverse packaging needs.
Coding & Counting: Automatically prints production dates and batch numbers while counting finished products, enhancing traceability efficiency.

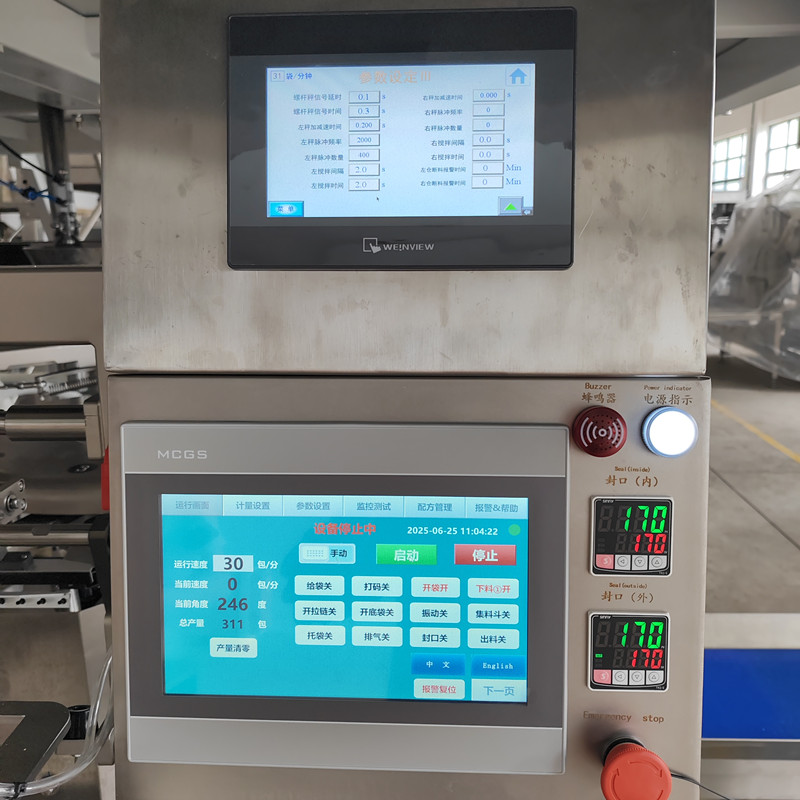

Parameters such as bag length, filling volume, and speed are adjustable via a touchscreen, allowing for production across multiple specifications without the need to change molds.
Components in contact with packaging materials and product contents are made of 304 stainless steel; the design complies with GMP standards, is easy to clean, corrosion-resistant, and prevents cross-contamination.
 |  |  |
 |  |  |
 |  |  |
