It is suitable for packing all kinds of irregular articles, sticky articles and solid objects.
1. Food: noodles, egg rolls, sausages, squid, bread, moon cakes, preserved fruit, soft candy, etc.
2. Chemical categories: soap, tape, etc.
3. Electrical switches: power strips, switches, etc
4. Other categories: essential oils, pocket notebooks, boxed pens, medicines, etc.
1. The whole machine is controlled by 4 or 6 servos;
2. Seven-inch touch screen display, easy operation and clear working status;
3. A variety of product parameters and formulas can be stored, which can be downloaded and used without repeated settings;
4. Automatic adjustment of bag length without manual setting;
5. Higher precision and accurate sealing and cutting position;
6. Stop position and print position can be set arbitrarily;
7. Simple mechanical structure, convenient and intuitive debugging and low after-sales maintenance cost;
8. The packaging range is expanded to adapt to a variety of product specifications;
9. In line with the structure of human engineering mechanics, can be convenient to quickly clean up,maintenance, overhaul of the machine;
10. Reduce the labor intensity of the operator, effectively improve production efficiency.

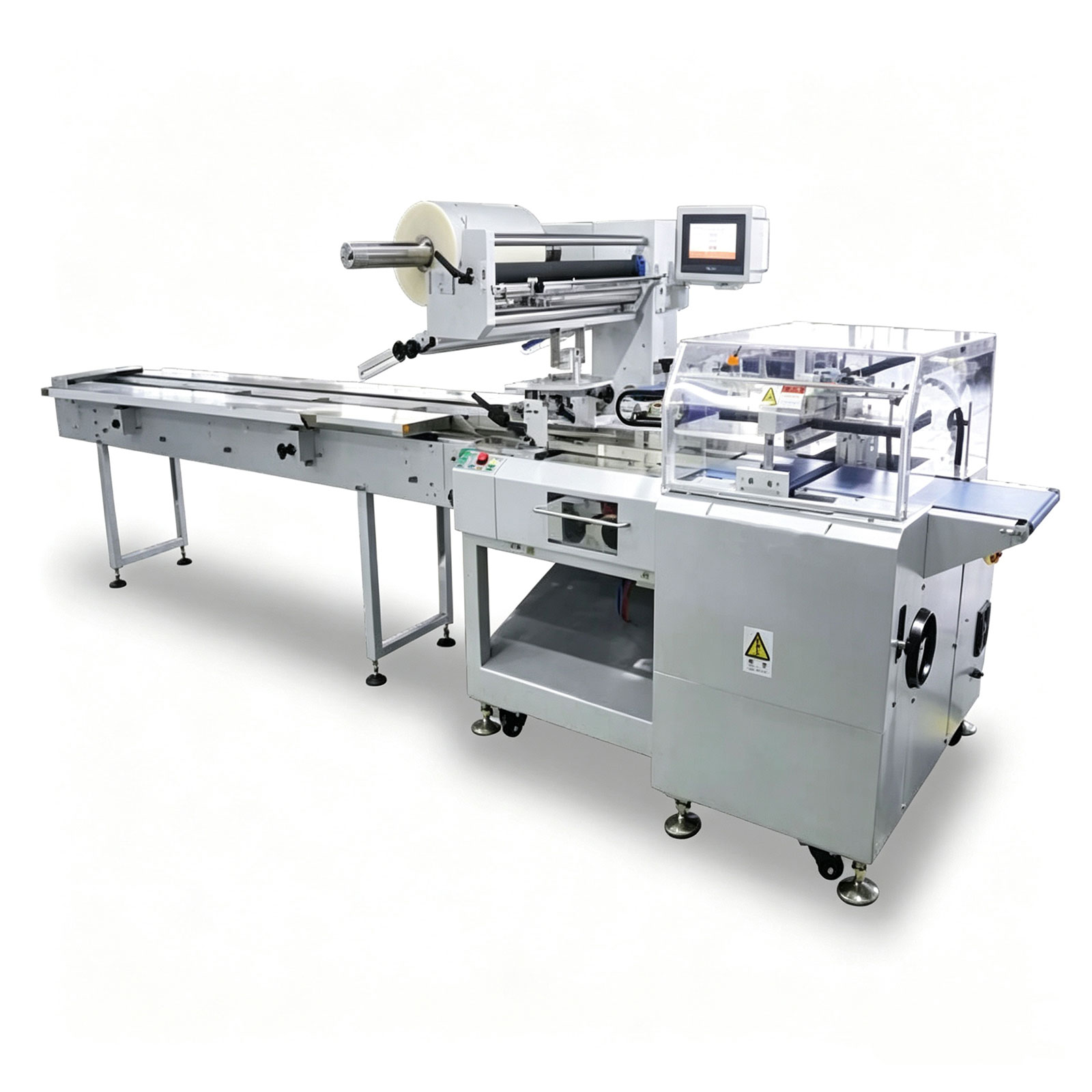

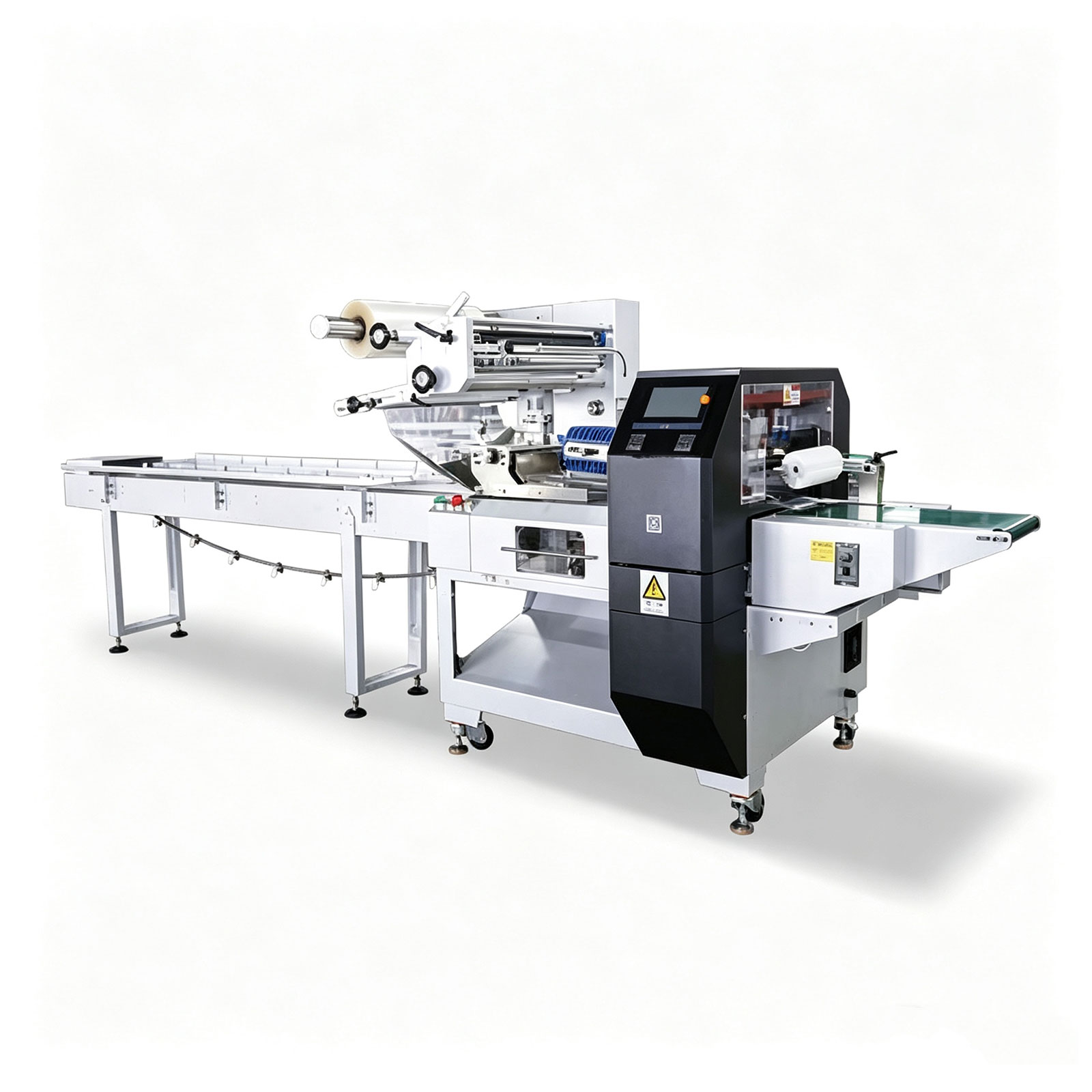

Model | HK-280 | HK-280W |
Center distance | 150/192 mm | 120/160 mm |
Package length | 120-600 mm | 120-600 mm |
Package width | 70-200 mm | 70-200 mm |
Package height | 20-80mm/70-110mm | 5-70mm/60-110mm |
Packing speed | 25-100 bags/min | 25-60 bags/min |
Film size | 200-600mm | 200-600mm |
Packaging film type | OPP/CPP、PT/PE、KOP/CPP、VMBOPP、VMCPP、VMPET etc. | |
Type of power supply | 220V 50HZ | 220V 50HZ |
General power | 5.3KW | 6.7KW |
Weight | 550 Kg | 700 Kg |
Dimension | 4260 × 1130 × 1400 mm | 4335 × 1200 × 1410 mm |
