It is suitable for packing all kinds of irregular articles, sticky articles and solid objects.
1. Food: noodles, egg rolls, sausages, squid, bread, moon cakes, preserved fruit, soft candy, etc.
2. Chemical categories: soap, tape, etc.
3. Electrical switches: power strips, switches, etc
4. Other categories: essential oils, pocket notebooks, boxed pens, medicines, etc.
1. The whole machine is controlled by six/seven servos;
2. The cutter seal for reciprocating structure, sealing smooth and beautiful;
3. The machine packaging range is large, suitable for packaging all kinds of large specifications,large size products;
4. Ten inch touch screen display, easy to operate, clear working;
5. Can store a variety of product parameters and formulas, do not need to set repeatedly, download can be used;
6. Automatically adjust the bag length without manual setting;
7. The machine has higher precision, sealing and cutting position is accurate;
8. Stop position, coding position can be set in the touch screen, click, convenient and fast;
9. Simple mechanical structure, convenient and intuitive debugging, low after-sales maintenance cost.

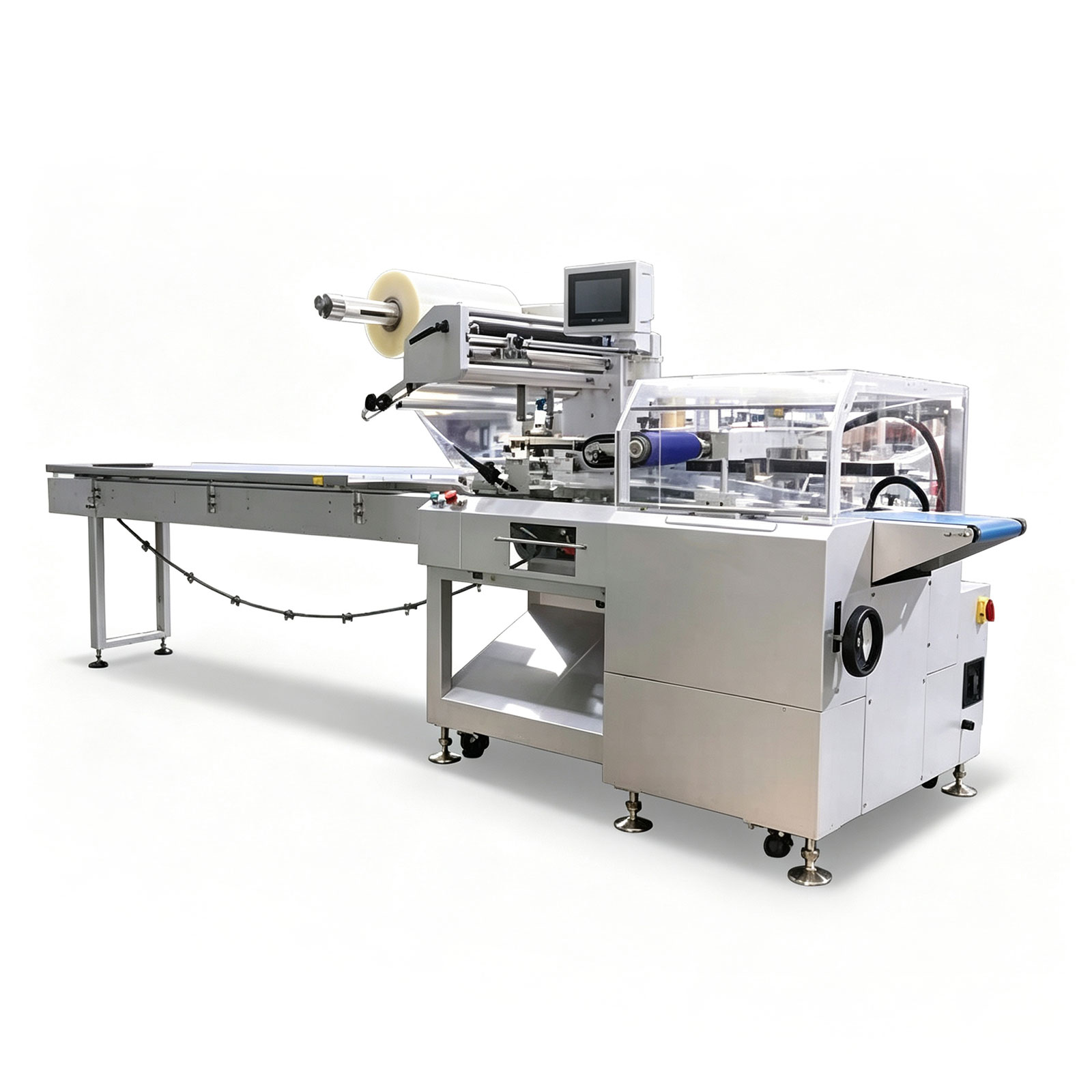

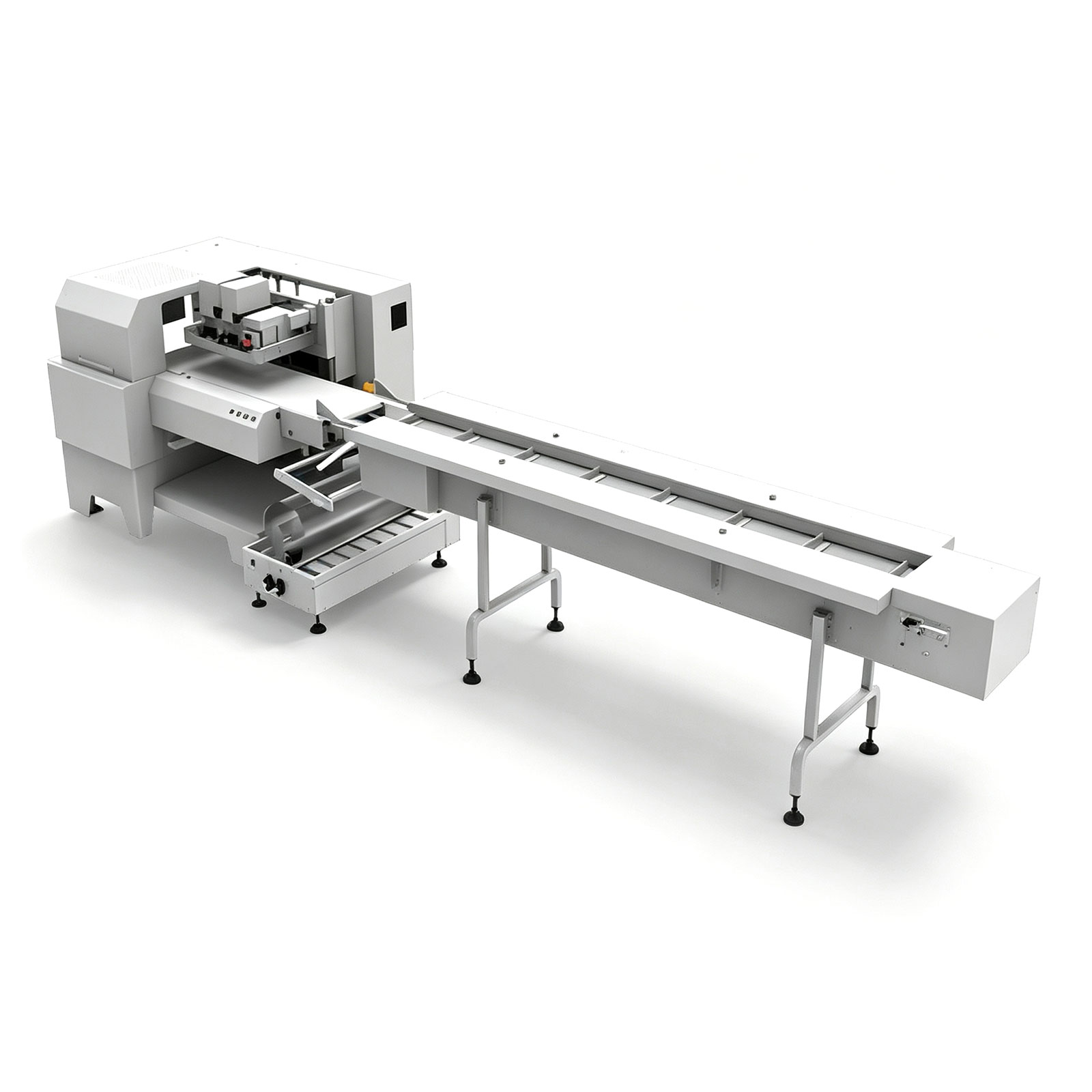

Model | HK-750W | HK-801W |
Center distance | 120/160 mm | 120/160 mm |
Package length | 120-600 mm | 150-600 mm |
Package width | 150-300 mm | 70-350 mm |
Package height | 5-70mm/60-110mm | 5-80mm/60-130mm |
Packing speed | 25-60 bags/min | 20-70 bags/min |
Film size | 300-750mm | 900mm(maximum) |
Packaging film type | OPP/CPP、PT/PE、KOP/CPP、VMBOPP、VMCPP、VMPET etc. | |
Type of power supply | 220V 50HZ | 220V 50HZ |
General power | 8KW | 8.1 KW |
Weight | 1500 Kg | 1500 Kg |
Dimension | 4360 × 1330 × 1460 mm | 5810 × 1400 × 1610 mm |
